What are the technical specifications of panasonic-sfs4-sfd-relay-socket?

Key technical specifications of Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import: product_type: Relay socket; installation: DIN rail mount; pin_count: 10 pins; connector_type: Screw terminal; rated_current: 6A; voltage: 250VAC.

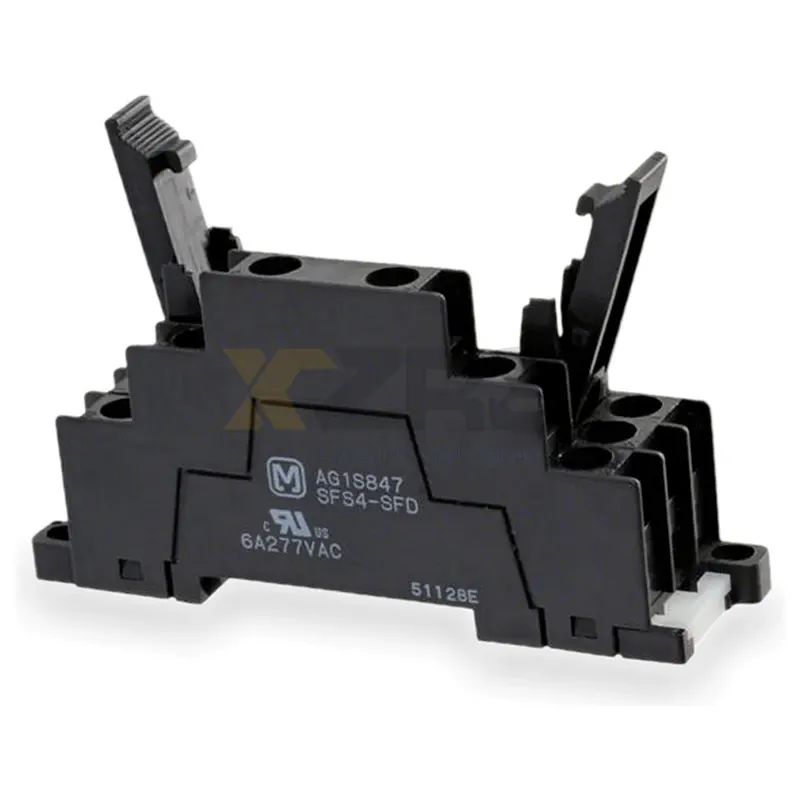

Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import - Image 1

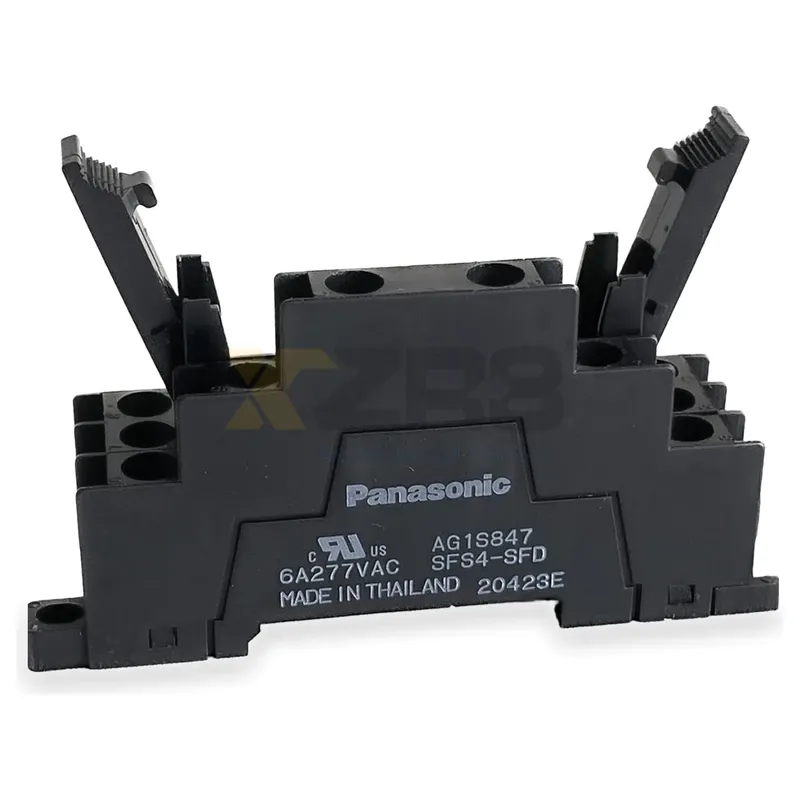

Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import - Image 2

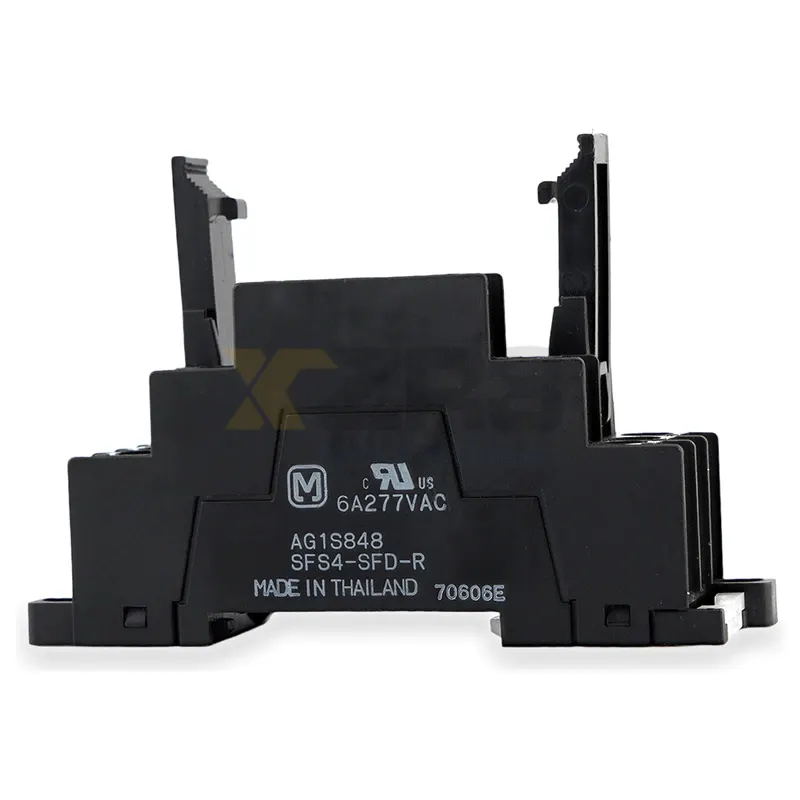

Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import - Image 3

1 / 4

Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import

Q: What are the OEM and cross-reference part numbers for SFS4-SFD?

The OEM and interchange cross-reference numbers for Panasonic PANASONIC SFS4-SFD Relay Socket DIN Rail 10 Pin Screw Terminal Original Import include: SFS4-SFD-R, AG1S848.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Product Type	Relay socket
Installation	DIN rail mount
Pin Count	10 pins
Connector Type	Screw terminal
Rated Current	6A
Voltage	250VAC
Contact Number	2 Form B (DPST-NC) + 4 Form A (4PST-NO)
Applicable Series	SF Series Safety Relay
Certification	EN50205 ClassA TÜV
Origin	Thailand

Manufacturer No.

SFS4-SFD

OEM Part No.

SFS4-SFD-RAG1S848

Electrical And Electronic Systems - Industrial Encyclopedia

Original import Panasonic Panasonic SFS4-SFD relay socket, suitable for SF series safety relays. DIN rail installation, 10 pin screw terminal, rated current 6A, rated voltage 250VAC. Adopting forced directional contact structure, compliant with EN50205 Class A TÜV certification, responsive and ensures safety. Suitable for industrial automation, machine control and other occasions. In stock, welcome to purchase.
