Which equipment and machinery is pn201-68563-kubota-voltage-regulator-rectifier compatible with?

Kubota PN201-68563 Voltage Regulator Rectifier Assembly (pn201-68563-kubota-voltage-regulator-rectifier) is compatible with: Kubota B2320DT, Kubota B2320HSD, Kubota B2620HSD, Kubota B2630HSD, Kubota B2920HSD, Kubota B3030HSD, Kubota B3300SUHSD, Kubota K008-3, Kubota ZD221, Kubota ZG222A.

Which engines does part pn201-68563-kubota-voltage-regulator-rectifier fit?

Kubota PN201-68563 Voltage Regulator Rectifier Assembly fits the following engines: Kubota D1005-E3, Kubota D1105-E3, Kubota V1505-E3.

What are the technical specifications of pn201-68563-kubota-voltage-regulator-rectifier?

Key technical specifications of Kubota PN201-68563 Voltage Regulator Rectifier Assembly: rated_voltage: 12V; system_type: Voltage Regulator Rectifier; mounting: Bolt-on with cooling fins; connector_type: OEM plug-in connector; housing_material: Aluminum die-cast; operating_temperature_range: -40°C to 85°C.

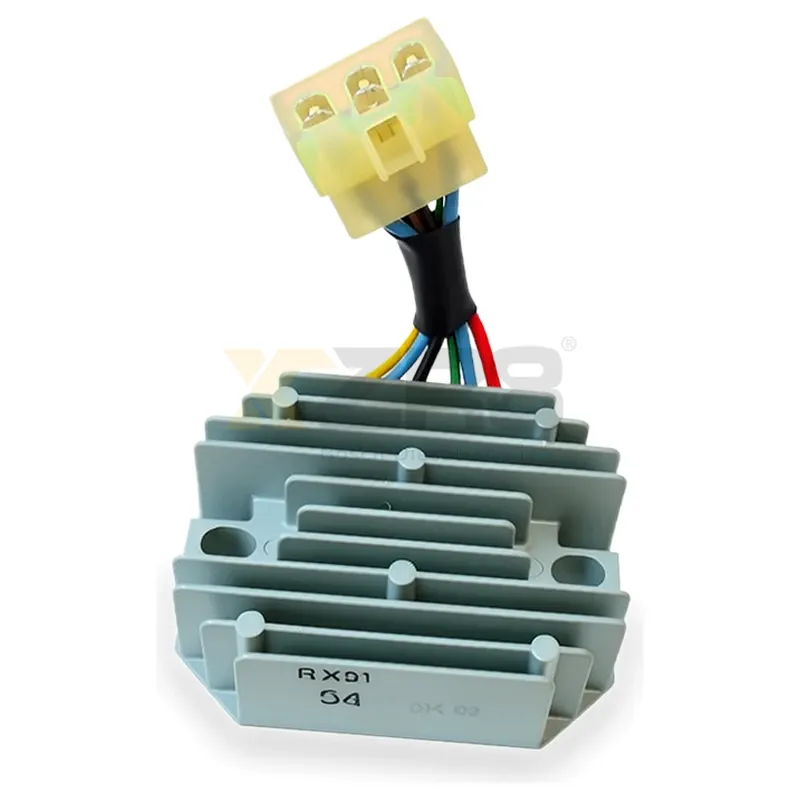

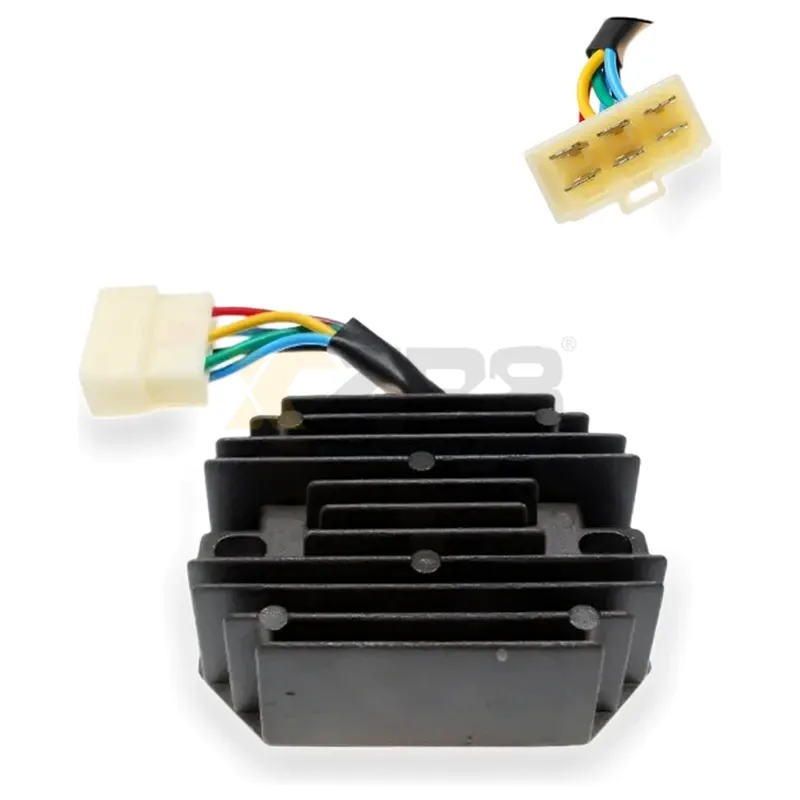

Kubota PN201-68563 Voltage Regulator Rectifier Assembly - Image 1

1 / 2

Kubota PN201-68563 Voltage Regulator Rectifier Assembly

Q: What are the OEM and cross-reference part numbers for PN201-68563?

The OEM and interchange cross-reference numbers for Kubota PN201-68563 Voltage Regulator Rectifier Assembly include: PN201-68563, PN201-68564, PN201-68562, PN201-68560, 5H215-41950, 5H215-41954, 5H215-41955, 19267-64602, 15351-64600, 121450-77710, 121450-77711, 121450-77790, 121520-77710, 121522-77790, 15351-64601.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Rated Voltage	12V
System Type	Voltage Regulator Rectifier
Mounting Type	Bolt-on with cooling fins
Connector Type	OEM plug-in connector
Housing Material	Aluminum die-cast
Operating Temperature Range	-40°C to 85°C
Regulated Voltage	14.2V ± 0.3V
Maximum Output	40A

Manufacturer No.

PN201-68563PN20168563

OEM Part No.

PN201-68563PN201-68564PN201-68562PN201-685605H215-419505H215-419545H215-4195519267-6460215351-64600121450-77710121450-77711121450-77790121520-77710121522-7779015351-6460115531-6460115531-6460317077-64600RP201-5371019267-64603185530

Engine Part No.

Kubota D1005-E3Kubota D1105-E3Kubota V1505-E3

Interchange No.

RS5155RS5101RS5102RS5102AKB-RP201-53710KBPN201-68563

Fitment Vehicles

Kubota B2320DTKubota B2320HSDKubota B2620HSDKubota B2630HSDKubota B2920HSDKubota B3030HSDKubota B3300SUHSDKubota K008-3Kubota ZD221Kubota ZG222AKubota ZG227AKubota ZG327PAKubota ZG332LP

Electrical And Electronic Systems - Industrial Encyclopedia

OEM replacement voltage regulator rectifier assembly PN201-68563 for Kubota B series tractors, K008 excavator, and ZD/ZG zero-turn mowers. 12V charging system component.
