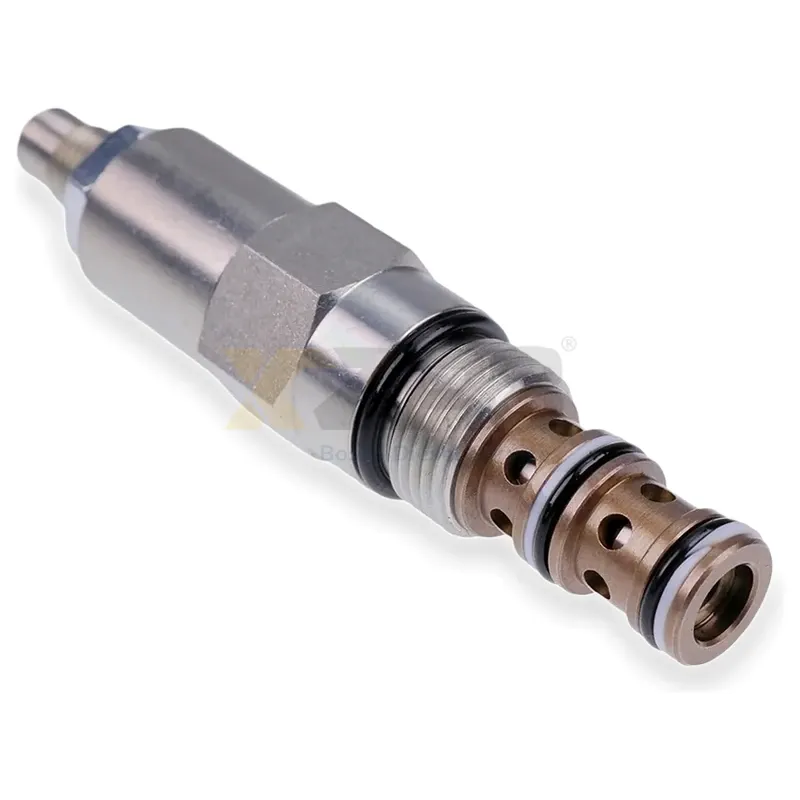

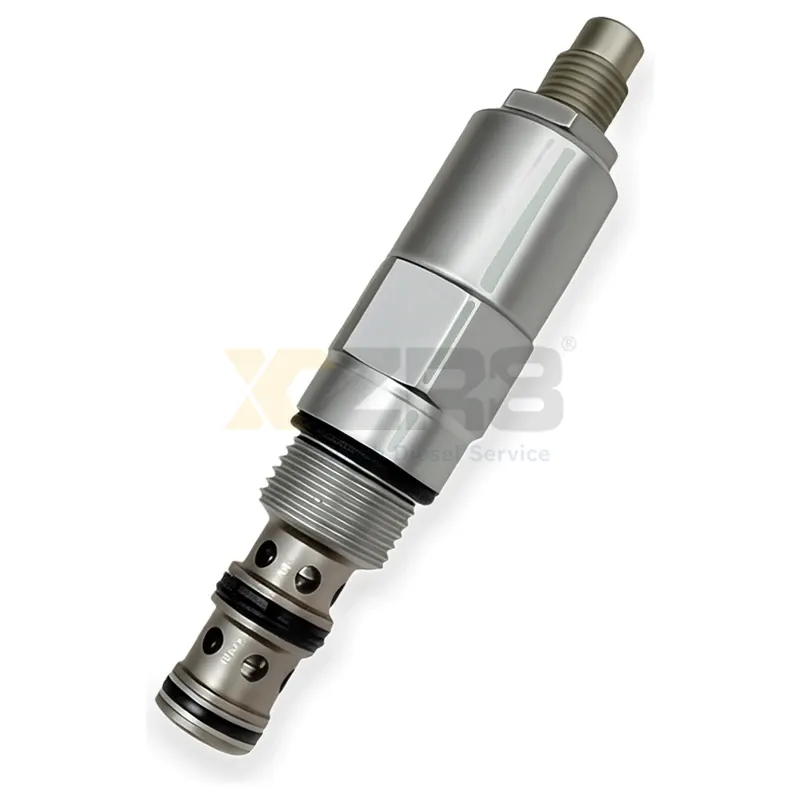

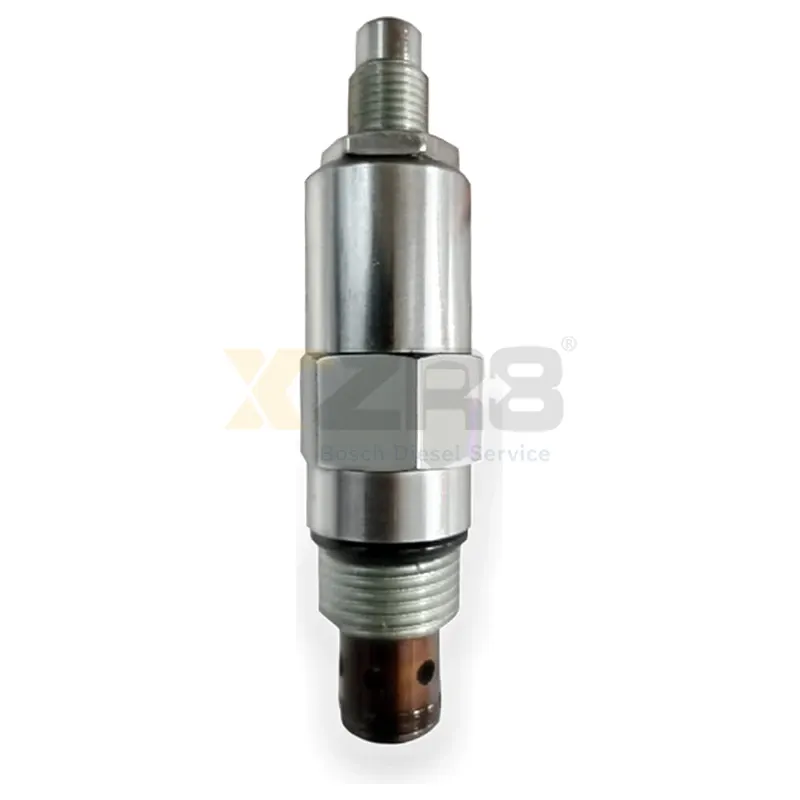

HydraForce PS08-32A-0-N-13 Sequence Valve
| Valve Type | Hydraulic Sequence Valve |
| Action Type | Direct-Acting, Spool-Type |
| Pilot Type | External Pilot |
| Drain Type | Internal Spring Chamber Drain |
| Maximum Flow Rate | 19 L/min (5 GPM) |
| Maximum Operating Pressure | 350 bar (5000 PSI) |
| Pressure Range | 100-3000 PSI (7-210 bar) |
| Cavity | VC08-3 |
| Port Thread | 3/4-16 UNF-2A |
| Seal Material | Buna-N (Nitrile) |
| Adjustment Type | Internal Hex (Code A) |
| Weight | 0.22 kg (0.49 lb) |
Manufacturer No.
PS08-32A-0-N-135605003PS0832A0N13
Hydraulic Systems - Industrial Encyclopedia
Screw-in cartridge style direct-acting spool-type hydraulic sequence valve with external pilot and internal spring chamber drain. Rated 19 L/min flow, 350 bar max pressure, Buna-N seals, VC08-3 cavity.
