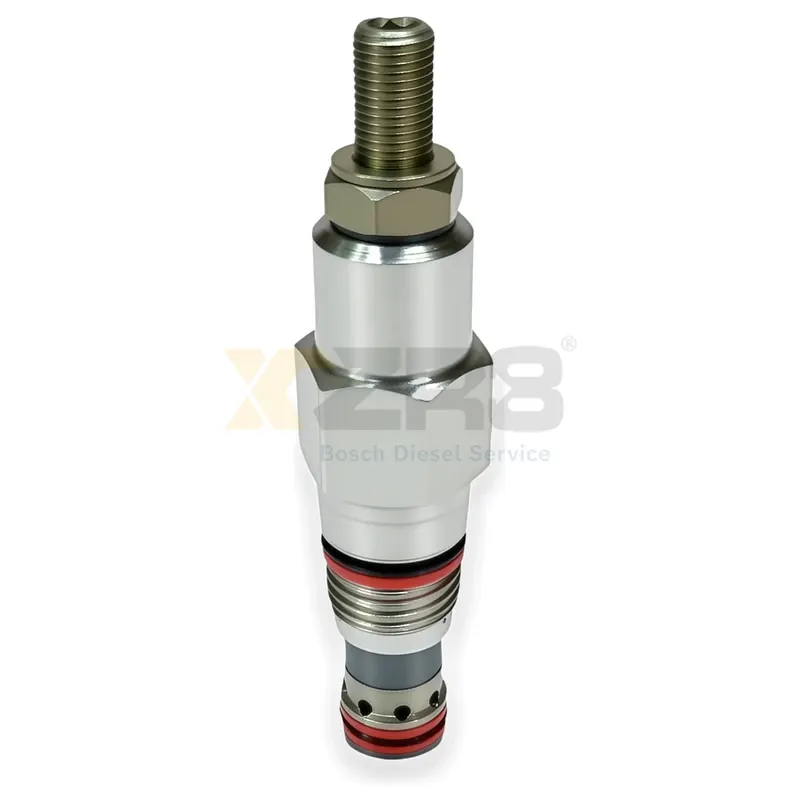

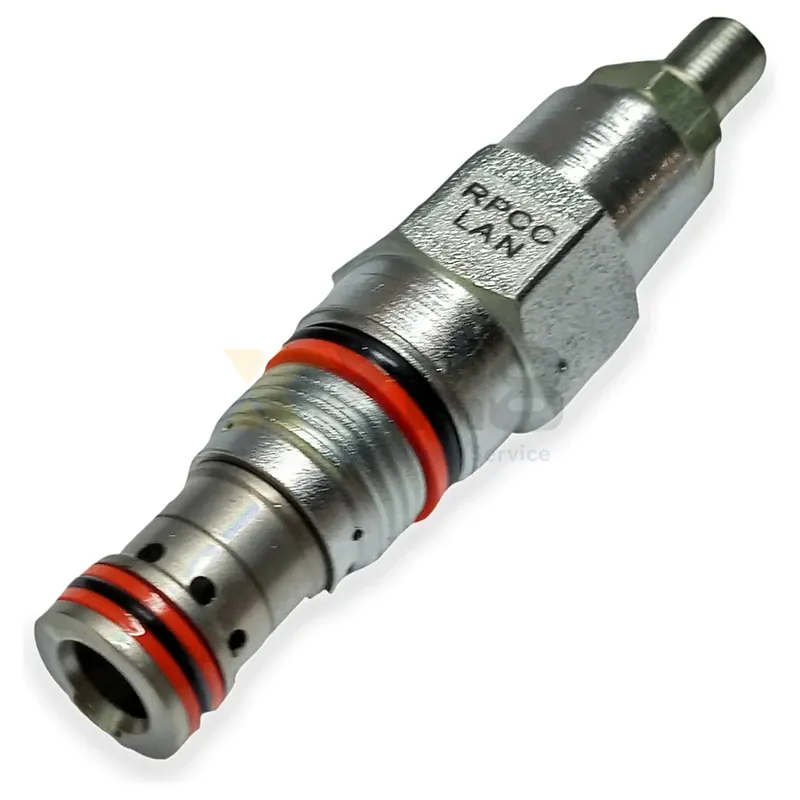

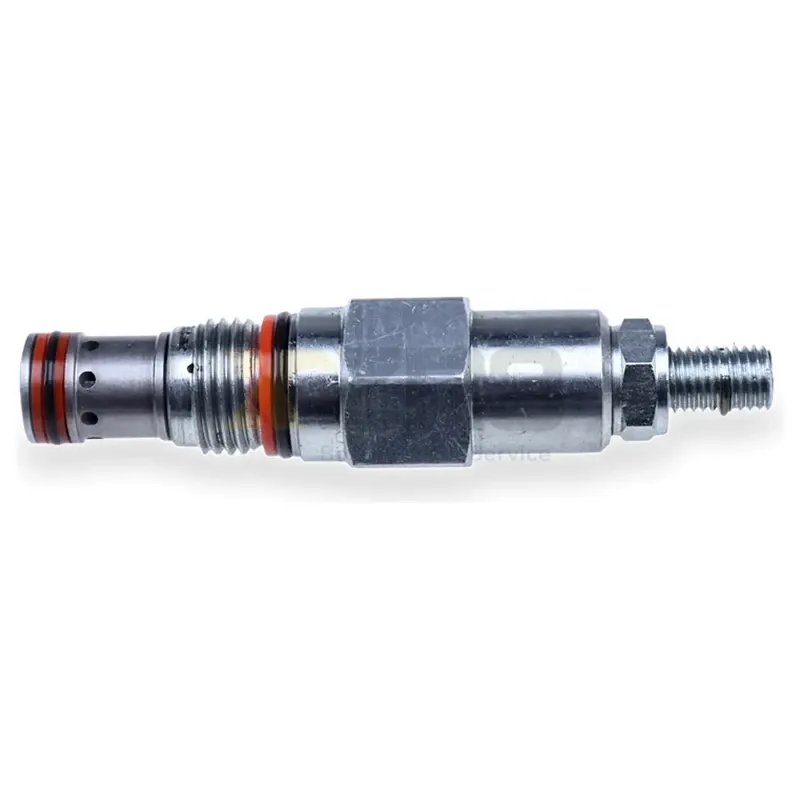

Sun Hydraulics RPCC-LAN Pressure Relief Cartridge Valve
| Valve Type | Pilot-Operated Balanced Piston Relief Cartridge |
| Cavity | T-162A |
| Supply Capacity | 12 gpm (45 L/min) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Pressure Range | 100-3000 psi |
| Export Set Pressure | 4 gpm |
| Leakage Amount | 2 in³/min @ 1000 psi (110 SUS) |
| Response Time | 10 ms |
| Seal Material | Buna-N (Nitrile) |
| Installation Torque | 20-25 lbf ft (27-33 Nm) |
| Adjustment | 5 turns (CW min to max) |
| Screwdriver Hex Size | 5/32 inch |
| Valve Hex Size | 3/4 inch |
| Port Configuration | 2-Port (Inlet Port 1, Tank Port 2) |
Manufacturer No.
RPCC-LANRPCCLAN
Interchange No.
RPCC-LBNRPCC-LCNRPCC-LWNRPCC-KWNRPCC-LNNRPEC-LANR900703898
Hydraulic Systems - Industrial Encyclopedia
Pilot-operated balanced piston relief cartridge RPCC-LAN with T-162A cavity, 12 gpm capacity, 5000 psi max pressure, 100-3000 psi adjustable range, Buna-N seals. Direct interchange for Sun Hydraulics cartridge valves.
