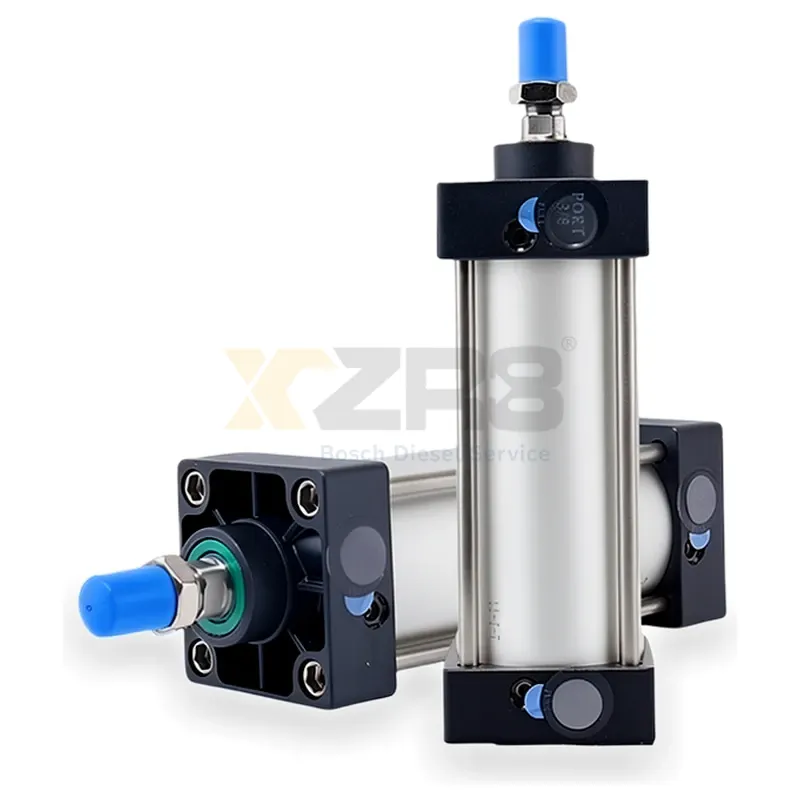

Airtac SC40X350S Standard Cylinder
| Bore Diameter | 40 mm |
| stroke_length | 350 mm |
| Action Type | Double Acting |
| Port Size | PT 1/4 |
| rod_thread | M12 x 1.25 |
| Maximum Axial Force | 502 N |
| Pull Force at 2175 PSI | 448 N |
| Working Pressure Range | 0.1 - 1.0 MPa |
| Operating Temperature Range | 5 - 60 °C |
| Filtration Rating | 40 μm |
| Body Material | Aluminum Alloy |
| Seal Material | TPU |
| cushioning_type | Adjustable Air Cushion |
| Magnet | With Magnet |
| Mounting Type | Tie Rod / Basic, FA, FB, CA, CB, LB, TC, TCM1 |
| Standard Compliance | ISO 15552 Compliant (Shortened) |
Manufacturer No.
SC40X350S
Hydraulic Systems - Industrial Encyclopedia
ISO 15552 compliant double-acting pneumatic cylinder with 40mm bore, 350mm stroke, PT1/4 ports, adjustable cushioning, magnetic piston, and 502N thrust force at 0.6MPa.
