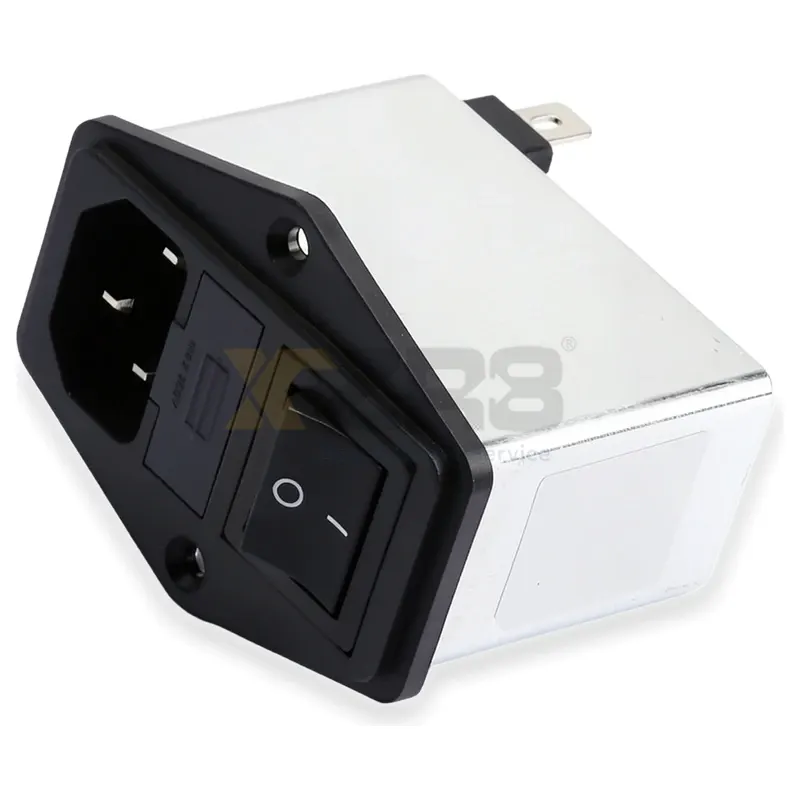

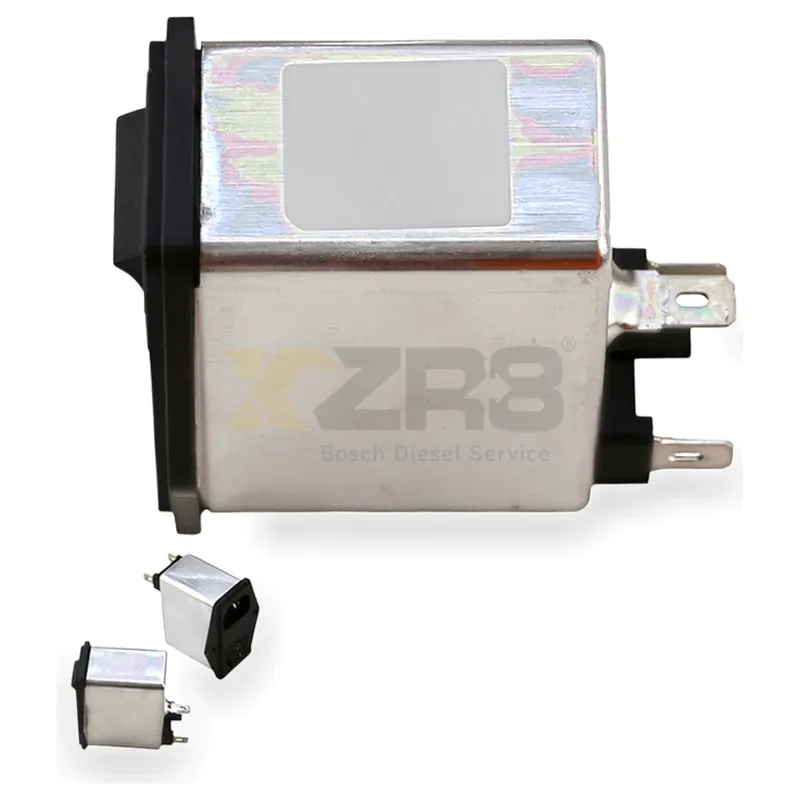

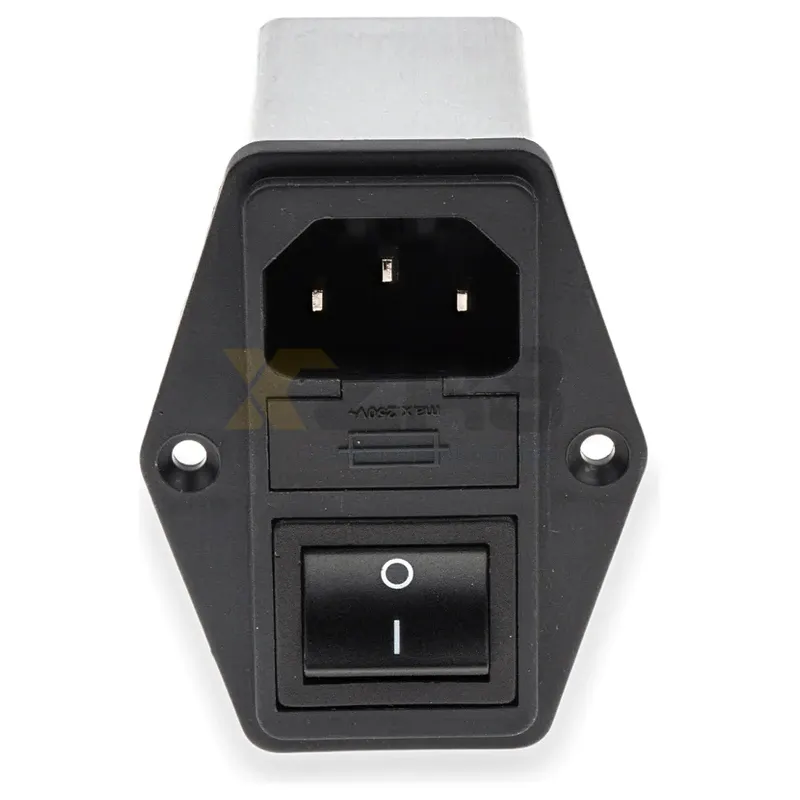

Schaffner FN284B-10-06 Compact Filter Power Input Module 10A 250VAC IEC C14 with Switch Fuse
VIEW PRICELog in to view your customer price
| Rated Current | 10A |
| Voltage | 250VAC |
| Frequency | 50/60Hz |
| Connector Type | IEC 320-C14 |
| Installation | Flange Mount |
| Switch Type | 2-pole Lever Switch |
| Fuse Holder | Dual fuse holder (5x20mm) |
| Leak Current | 2µA @ 120VAC 60Hz |
| Pollution Grade | PD2 |
| Protection Rating | IP40 |
| Fire Resistance Grade | UL 94V-2 |
| Shell Material | Metal |
| Connector Type | FASTON |
| Applications | Medical Equipment, Industrial Electronics |
Manufacturer No.
FN284B-10-06
Interchange No.
FN284-10-06
Electrical and Electronic System - Industrial Encyclopedia
The Schaffner FN284B-10-06 is a compact filter power input module with a rated current of 10A and voltage of 250VAC, equipped with an IEC C14 plug, dual fuse holder, and a 2-pole lever switch. It is suitable for applications requiring EMC filtering in medical equipment, industrial electronics, etc.Flange Installation available, with a leakage current as low as 2µA and conforms to the UL 94V-2 flame retardant rating.
