What are the technical specifications of schurter-ta45-abdbl150c0-thermal-circuit-breaker?

Key technical specifications of Schurter TA45-ABDBL150C0 Thermal Circuit Breaker 15A 240VAC/60VDC 2 Pole Panel Mounting: series: TA45 Series; breaker_type: Thermal fuse; polarization: 2 Pole; rated_current: 15A; rated_power: 60VDC; installation: Panel Mount.

Schurter TA45-ABDBL150C0 Thermal Circuit Breaker 15A 240VAC/60VDC 2 Pole Panel Mounting - Image 1

Schurter TA45-ABDBL150C0 Thermal Circuit Breaker 15A 240VAC/60VDC 2 Pole Panel Mounting - Image 2

1 / 3

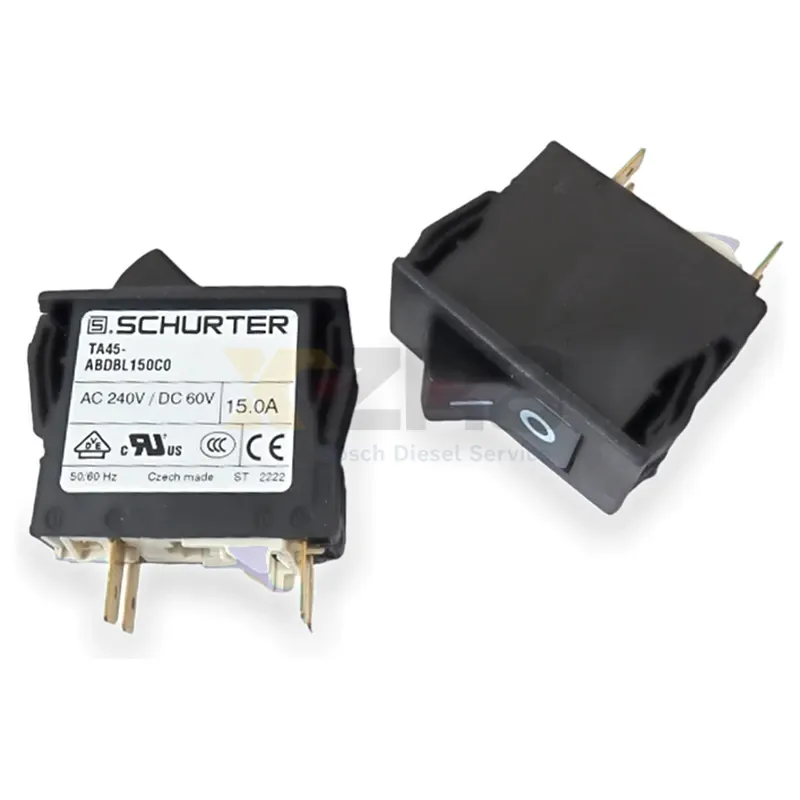

Schurter TA45-ABDBL150C0 Thermal Circuit Breaker 15A 240VAC/60VDC 2 Pole Panel Mounting

Q: What are the OEM and cross-reference part numbers for TA45-ABDBL150C0?

The OEM and interchange cross-reference numbers for Schurter TA45-ABDBL150C0 Thermal Circuit Breaker 15A 240VAC/60VDC 2 Pole Panel Mounting include: 4430.1089, 4430.2351, TA45-ABDBL150C0-AZM02, TA45-ABDBL150C0-AZM03.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Series	TA45 Series
Breaker Type	Thermal fuse
Polarization	2 Pole
Rated Current	15A
Rated Power	60VDC
Installation	Panel Mount
Executor Type	Tilt Lever
Connector Type	Quick connection (6.3mm)
Operating Temperature	-10°C to 55°C
Release Date	0.02s to 0.05s
Protection Rating	IP40
Rohs Compliance	Yes

Manufacturer No.

TA45-ABDBL150C0

OEM Part No.

4430.10894430.2351

Interchange No.

TA45-ABDBL150C0-AZM02TA45-ABDBL150C0-AZM03

Electrical And Electronic Systems - Industrial Encyclopedia

Schurter TA45-ABDBL150C0 thermal circuit breaker, TA45 series, rated current 15A, voltage 240VAC/60VDC, 2 pole, panel mounting, lever operation. Suitable for overload protection in industrial equipment, medical equipment, commercial appliances, etc. Compliant with RoHS standard, featuring quick connection terminals, operating temperature -10°C to 55°C, tripping time 0.02-0.05 seconds.
