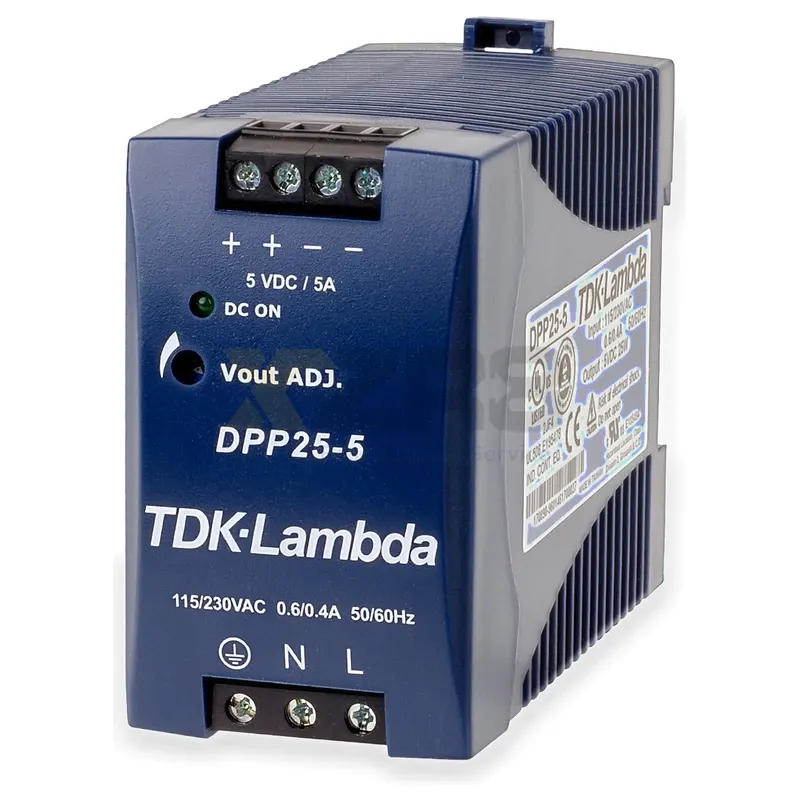

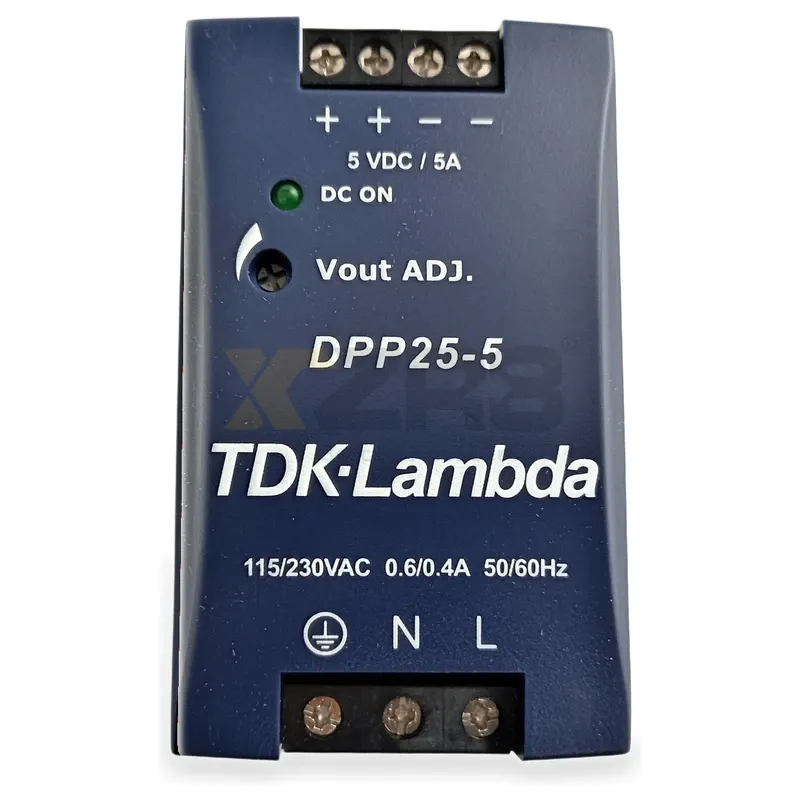

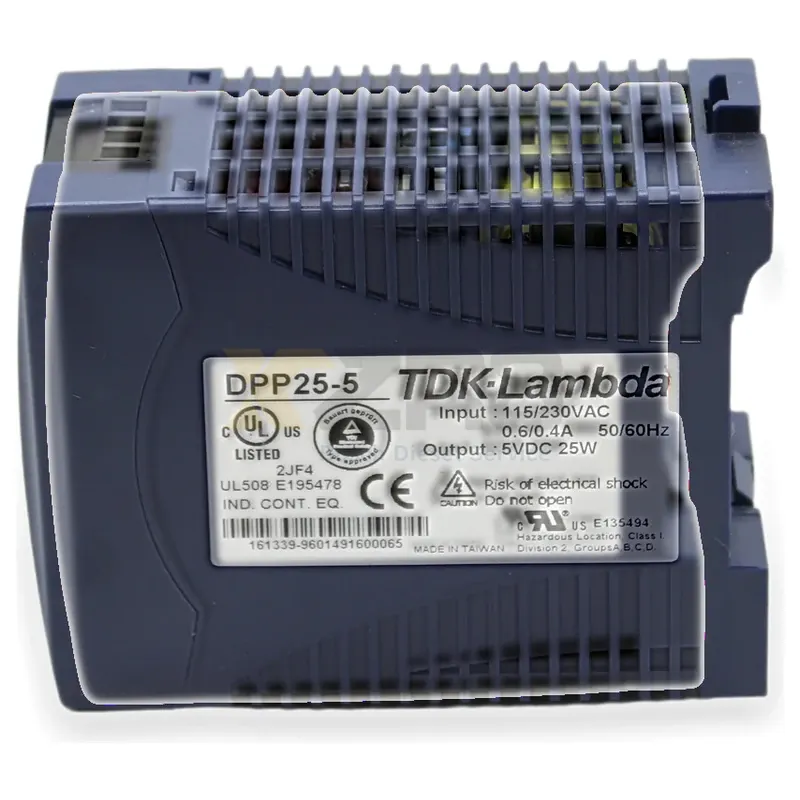

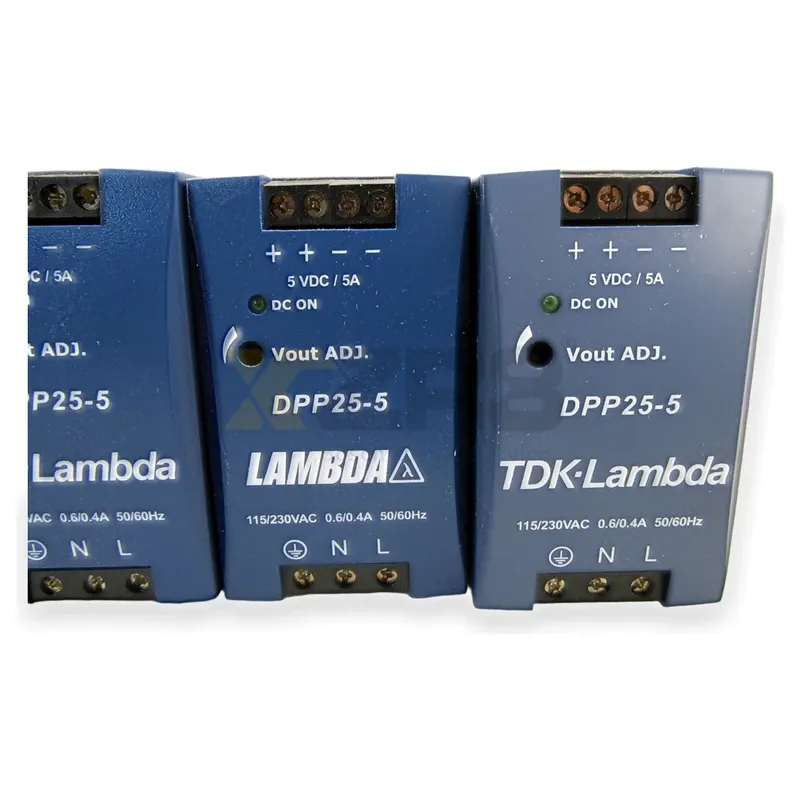

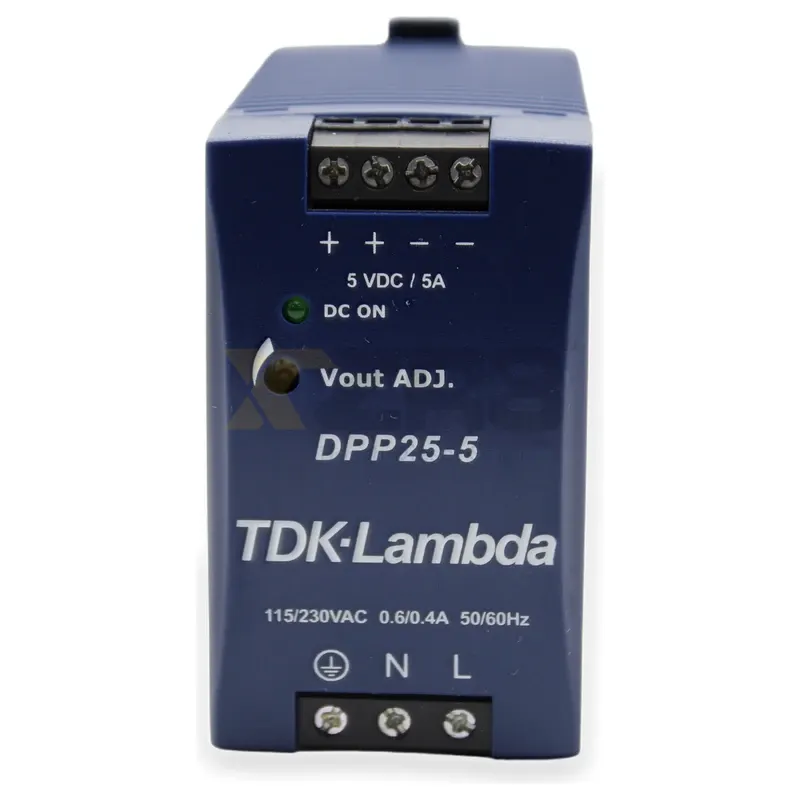

TDK-Lambda DPP25-5 AC/DC DIN Rail Power Supply 25W 5V 5A
| Rated Power | 25W |
| Voltage Output | 5V DC |
| Power Output | 5A |
| Voltage Range | 85~264VAC |
| Frequency Range | 63Hz |
| Quantity | 1 |
| Installation | DIN track installation (TS35/7.5 or TS35/15) |
| Coolant Type | Natural Convection Cooling |
| Overcurrent Protection | 125%~137.5% |
| Over Pressure Protection | Loop AC Circuit Reset |
| Compliance Standard | CE, UL/cUL60950, UL508, NEC Class 2 |
| EMC Standard | EN55011-B, EN55022-B |
| Weight | 260g |
Manufacturer No.
DPP25-5
Electrical And Electronic Systems - Industrial Encyclopedia
The TDK-Lambda DPP25-5 is a 25W single-output AC/DC DIN rail power supply with an output voltage of 5V and an output current of 5A. It supports a wide range of 85-264VAC input, natural convection cooling, and features overcurrent protection (125-137.5%) and overvoltage protection. Compliant with CE, UL/cUL60950, UL508 safety standards, suitable for industrial control, ITE and other applications. Compact design, can be mounted on TS35 rail.
