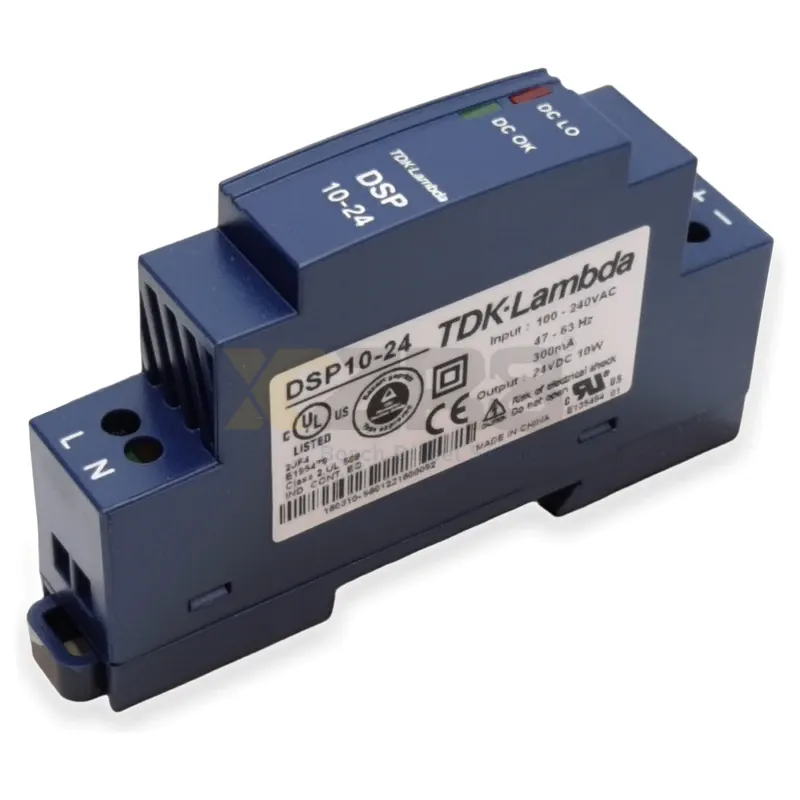

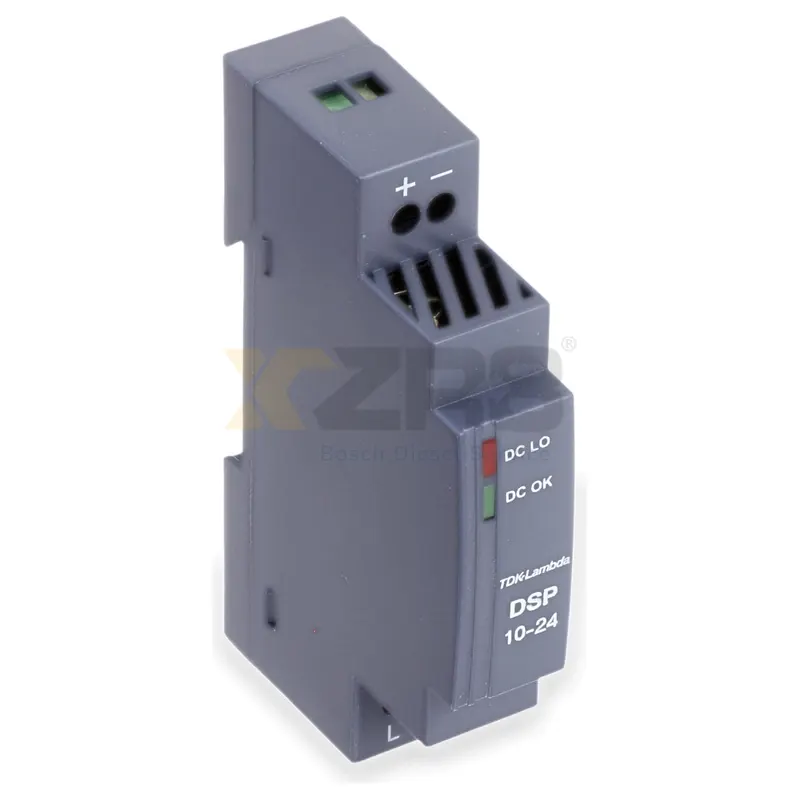

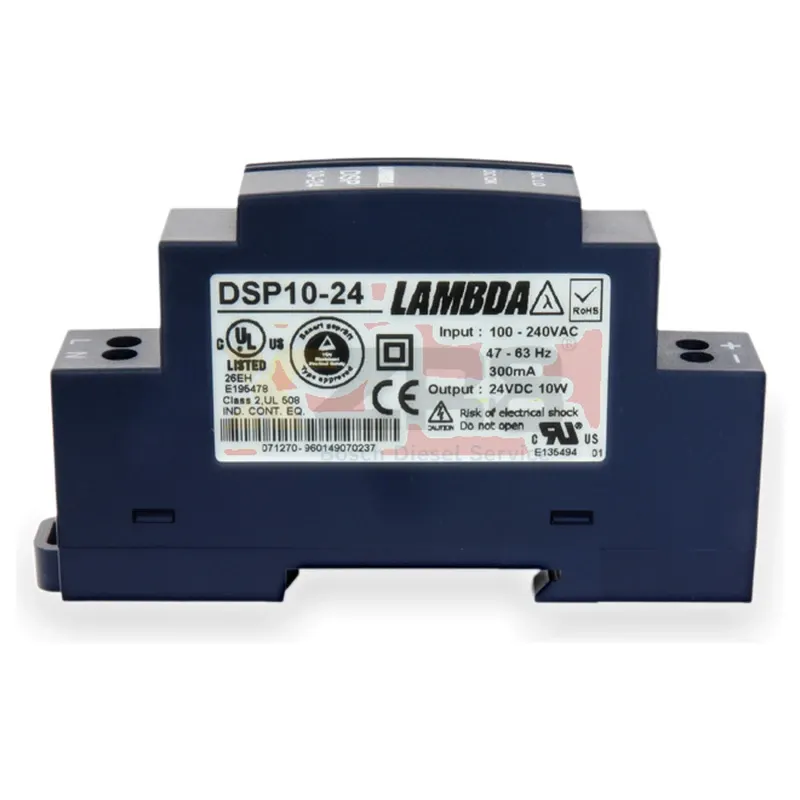

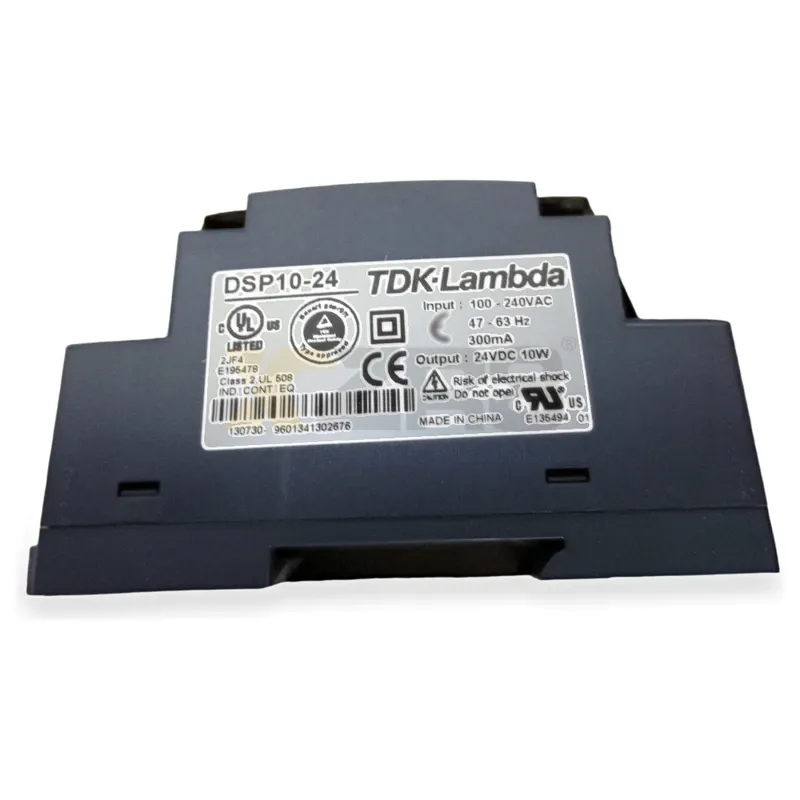

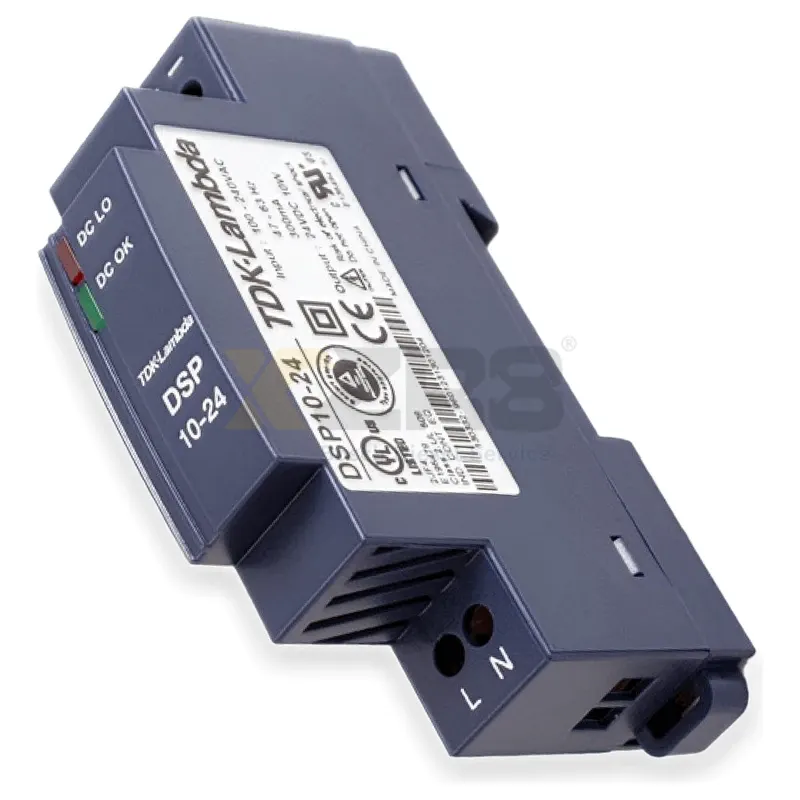

TDK-Lambda DSP10-24 AC/DC DIN Rail Power Supply 24V 10W Switching Power Supply
| Model | DSP10-24 |
| Brand | TDK-Lambda |
| Product Type | AC/DC DIN Rail Power Supply |
| Voltage | 90-264VAC / 120-370VDC |
| Power Current | 300mA |
| Voltage Output | 24VDC |
| Power Output | 0.42A |
| Rated Power | 10.1W |
| Filter Efficiency | 80% |
| Installation | DIN rail mount |
| Size (Width x Depth x Height) | 18mm x 90mm x 56mm |
| Operating Temperature | -25°C to +71°C |
| Coolant Type | Natural Convection Cooling |
| Compliance Standard | UL1310 Class 2, UL508, UL60950-1, EN60950-1, CE |
| Protection Rating | Class II Double Insulation |
| Output Wobble | 50mV |
| Overcurrent Protection | 110-160% Return Style |
Manufacturer No.
DSP10-24
Electrical And Electronic Systems - Industrial Encyclopedia
TDK-Lambda DSP10-24 is a 10.1W low profile DIN rail mounted power supply, input voltage 90-264VAC, output 24VDC/0.42A. Compliant with UL1310 Class 2, UL508, UL60950-1, EN60950-1, CE safety standards, suitable for building automation and industrial control. Compact design, width only 18mm, depth 56mm, natural convection cooling, operating temperature -25°C to +71°C.
