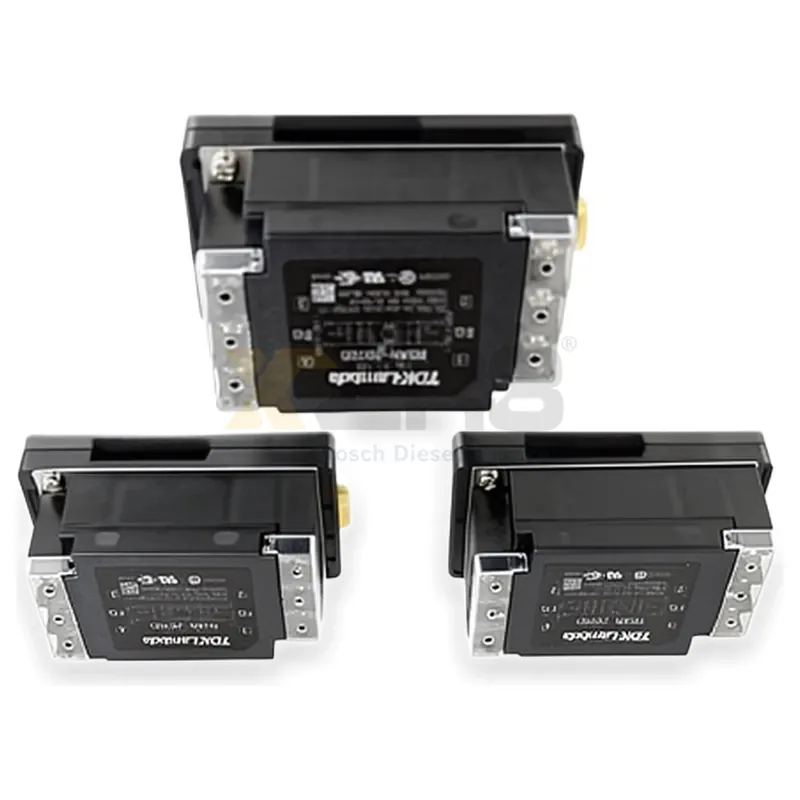

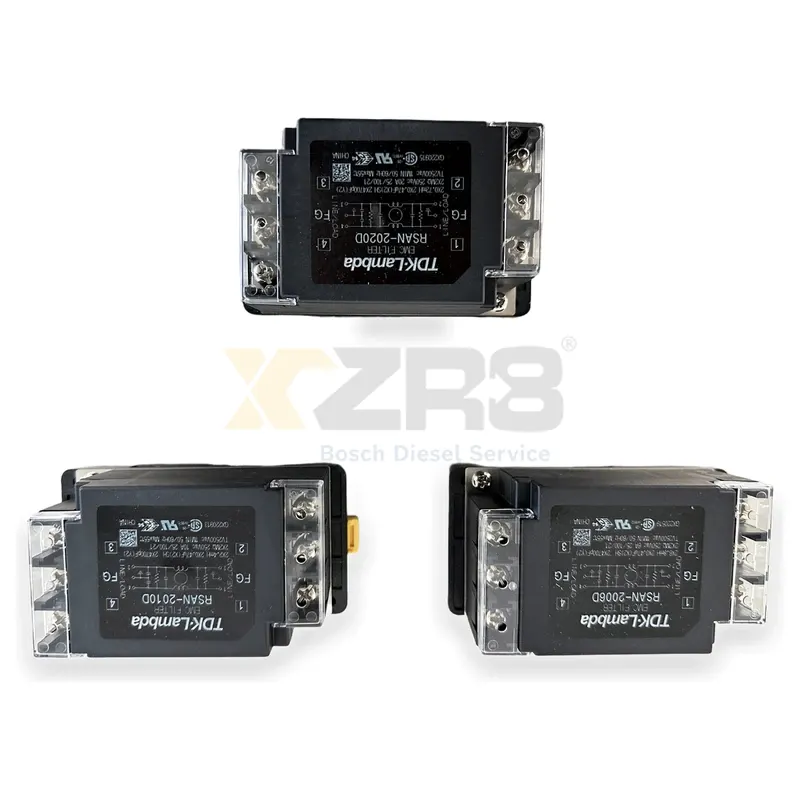

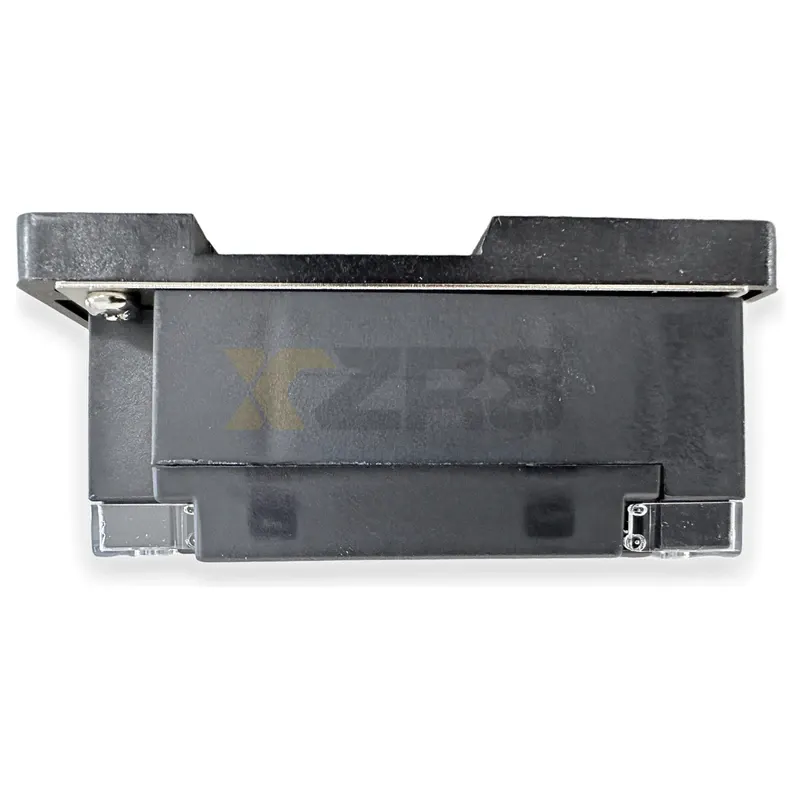

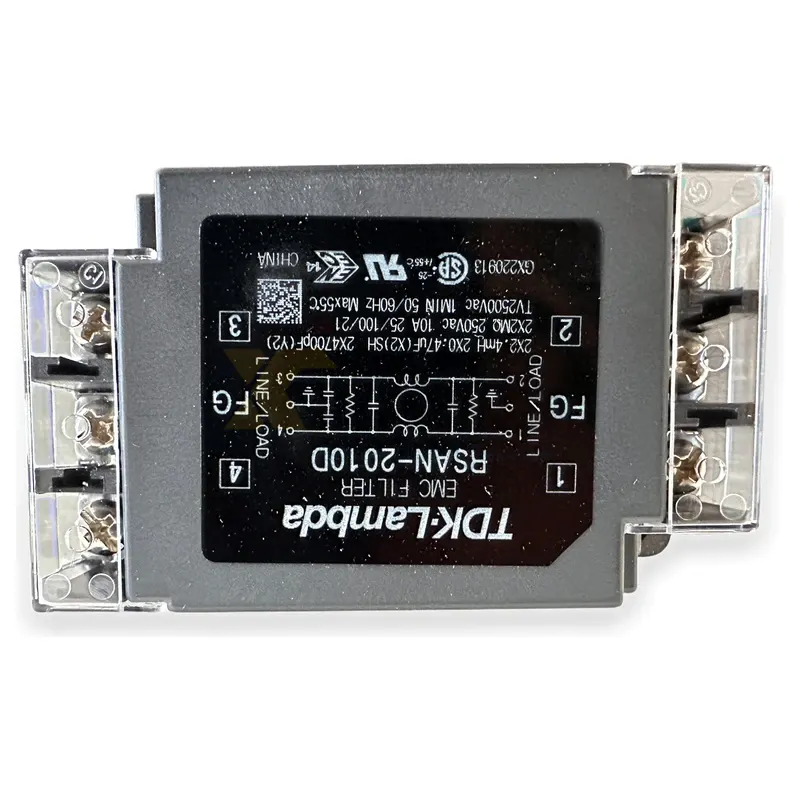

TDK-Lambda RSAN-2010D Power Line Filter 10A 250V DIN Rail Mount
| Rated Current | 10A |
| Voltage | 250VAC/VDC |
| Filter | Single-phase power line EMC filter |
| Installation | DIN rail mount |
| Connector Type | Terminal Block |
| Operating Temperature | -25°C to 85°C |
| Weight | 260g (Typical Value) |
| Height | 43.4mm |
| Performance Enhancement | Pulse Attenuation |
| Compliance Standard | RoHS |
Manufacturer No.
RSAN-2010D
Interchange No.

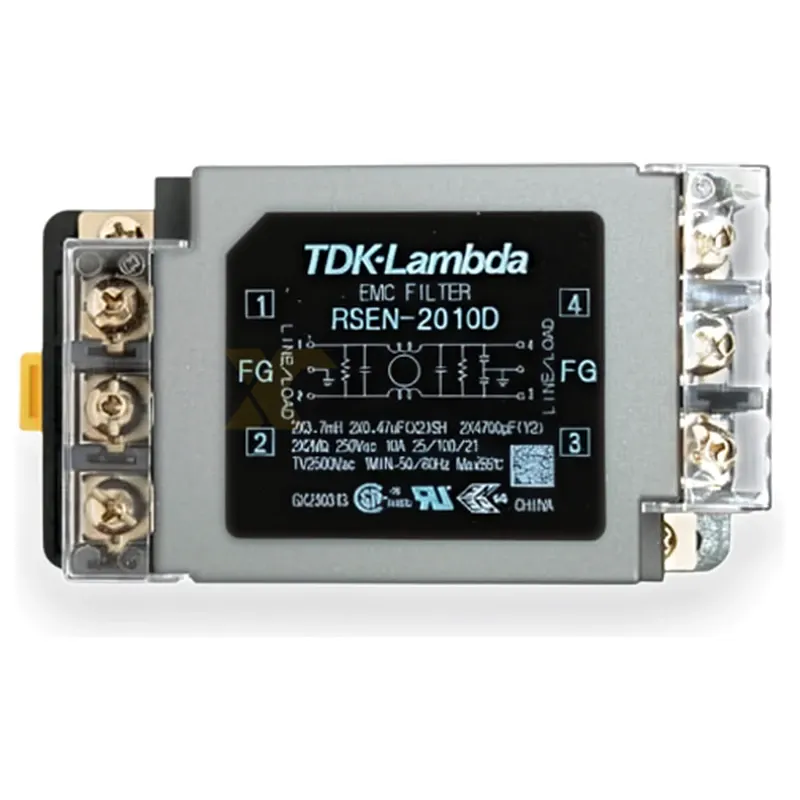

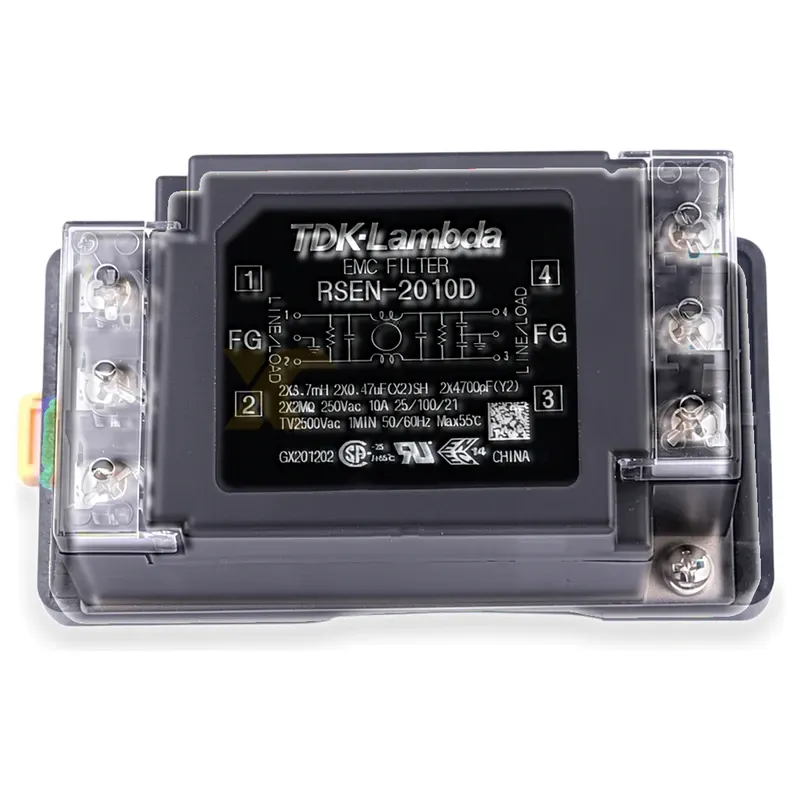

RSEN-2010D
Electrical And Electronic Systems - Industrial Encyclopedia
TDK-Lambda RSAN-2010D is a single-phase power line EMC filter, rated current 10A, rated voltage 250VAC/VDC, with DIN rail mounting and terminal block connection. Suitable for industrial equipment, medical equipment, aerospace and other applications requiring electromagnetic compatibility (EMC). The filter has pulse attenuation function, complies with RoHS standard, and has a working temperature range of -25°C to 85°C. RSAN-2010D is a standard model in the RSAN series, providing reliable noise suppression performance.
