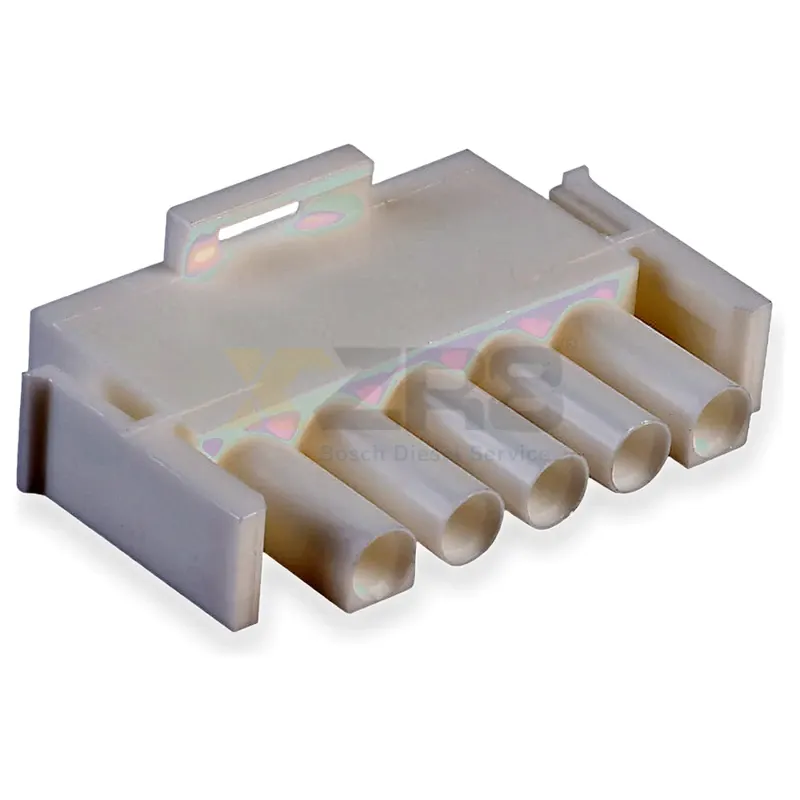

TE Connectivity AMP 350809-1 Universal MATE-N-LOK 5-Pin Rectangular Connector Housing
VIEW PRICELog in to view your customer price
| Product Type | Plug Housing |
| Series | Universal MATE-N-LOK |
| Bit Count | 5 |
| Cylinder Number | 1 |
| Center Spacing | 6.35 mm [0.25 in] |
| Connector Type | Rectangular Power Connector |
| Connector System | Wire-to-board/Wire-to-wire |
| Shell Color | White |
| Shell Material | Nylon GF |
| Fire Resistance Grade | UL94V-0 |
| Operating Temperature | -40°C to 105°C |
| Voltage | 600 VAC/DC |
| Rated Current | 19 A |
| Connector Type | Male/Female Ends |
| Locking Method | Positive lock |
| Installation | Free Suspension |
| Circuit Application | Power and Signal |
| CSA Certification | LR 16455 |
Manufacturer No.
350809-1
Interchange No.
809N03
Electrical and Electronic System - Industrial Encyclopedia
Original TE Connectivity 350809-1 MATE-N-LOK standard rectangular connector housing, 5-position single row, center spacing 6.35mm, nylon GF material, UL94V-0 flame retardant grade. Suitable for wire-to-board/wire-to-wire connections, supports terminal position assurance (TPA) device. Widely used in computers, peripherals, home appliances and industrial equipment. In stock, providing technical specifications and pricing information.
