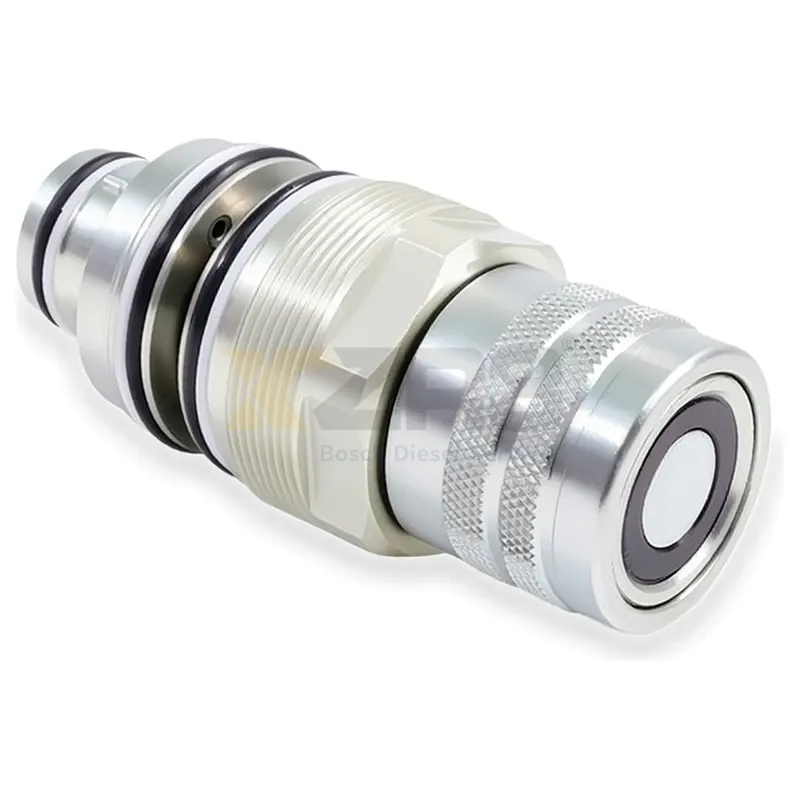

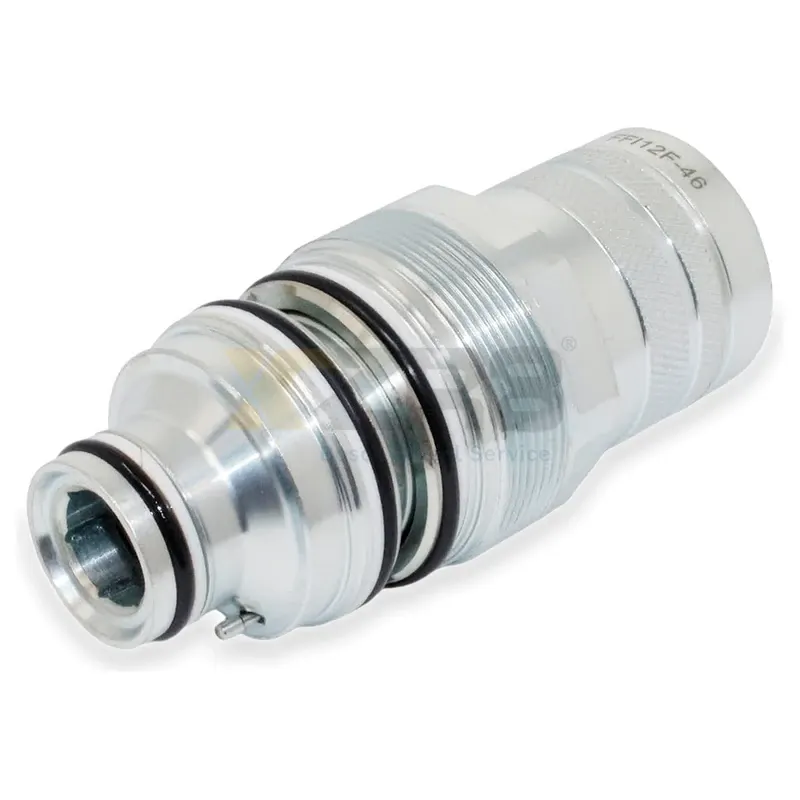

Topline TL24 1/2 Inch Flat Face Hydraulic Quick Connect Coupler Set
| Connector Type | Flat Face (Flush Face) |
| Interface Standard | ISO 16028 |
| Body Diameter | 1/2 inch |
| Thread Size | #10 JIC (7/8-14 UNF-3A) |
| Thread Specification | JIC 37° Flare Male |
| Rated Pressure | 35 MPa (5076 PSI) |
| Rated Flow | 45 L/min (12 GPM) |
| Material | Carbon Steel |
| Coating | Trivalent Zinc / Zinc-Nickel |
| Seal Material | NBR / Polyurethane |
| Connection Method | Push-to-Connect |
| Valve Type | Flat Face Valve |
| Operating Temperature Range | -20°C to 100°C (-4°F to 212°F) |
| Leakage Amount | Minimal (Near Zero) |
| Air Filtration | Minimal |
Manufacturer No.
TL24
OEM Part No.
724677772467997246802724964366798376680018AT406475
Engine Part No.
Kubota V1505Kubota V1703Kubota V2203Kubota V2003-T
Interchange No.
FEM-501-10FO-NLFFH-10-10-JICQKEP-10-JICFIRG-10-JIC
Fitment Vehicles
Bobcat 463Bobcat 553Bobcat 753Bobcat 763Bobcat 773Bobcat 853Bobcat 863Bobcat 873Bobcat 883Bobcat S130Bobcat S150Bobcat S160Bobcat S175Bobcat S185Bobcat S205Bobcat S220Bobcat S250Bobcat S300Bobcat T140Bobcat T180Bobcat T190Bobcat T250Bobcat T300Bobcat A220Bobcat A300Bobcat A770Bobcat V519Bobcat V723
Hydraulic Systems - Industrial Encyclopedia
ISO 16028 1/2 inch body #10 JIC flat face hydraulic quick coupler set, 5076 PSI rated, carbon steel construction for Bobcat 463 553 753 763 skid steer loaders.
