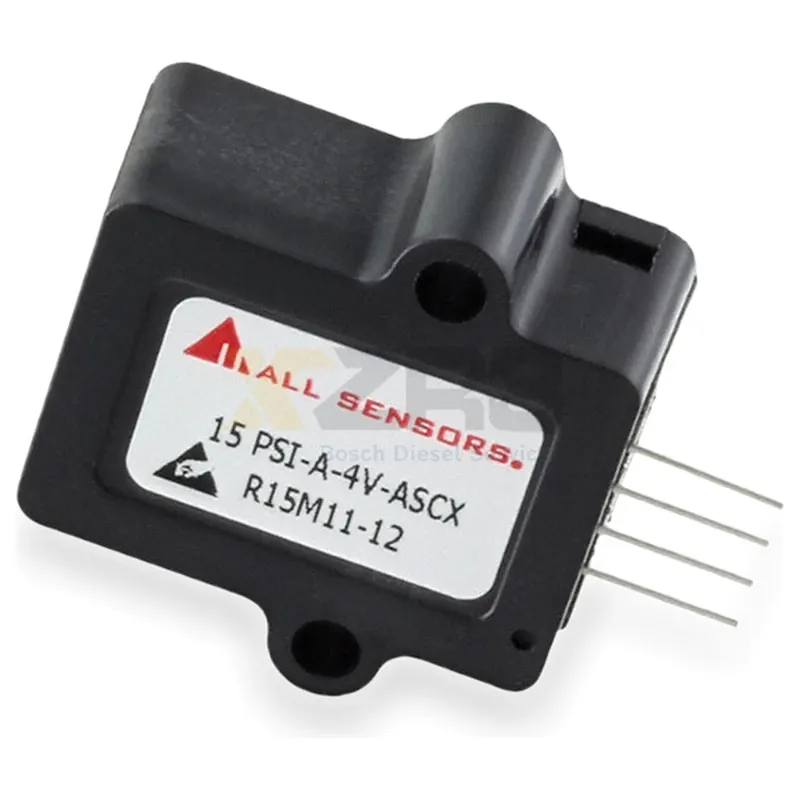

All Sensors 15PSI-A-4V-ASCX Panel Mount Pressure Sensor - Absolute Pressure 0-15psi 4.5V Output SIP-4
VIEW PRICELog in to view your customer price
| Pressure Type | Absolute pressure |
| Range | 0-15 psi |
| Output Type | Voltage |
| Output Voltage Range | 4.5V (proportional) |
| Power Voltage | 5 Vdc |
| Encapsulation | SIP-4 |
| Operating Temperature | -40°C to 125°C |
| Accuracy | ±0.5% FSS |
| Characteristics | Temperature Compensation, Calibration Zero and Range |
Manufacturer No.
15PSI-A-4V-ASCX
Electrical and Electronic System - Industrial Encyclopedia
All Sensors 15PSI-A-4V-ASCX is a panel mount absolute pressure sensor with a range of 0-15psi and provides a proportional 4.5V voltage output. Utilizing proprietary encapsulation technology to reduce error, temperature compensation, zero-point calibration, and range calibration. Suitable for medical instruments, environmental monitoring, HVAC, and pneumatic control applications. Compatible with Sensym ASCX series, packaged in SIP-4, operating voltage 5Vdc.
