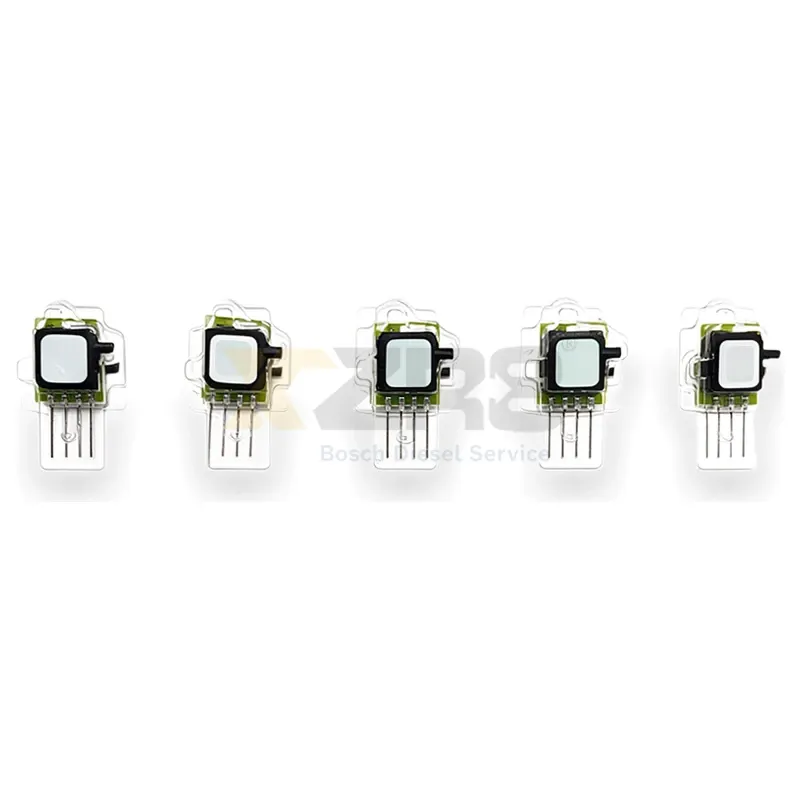

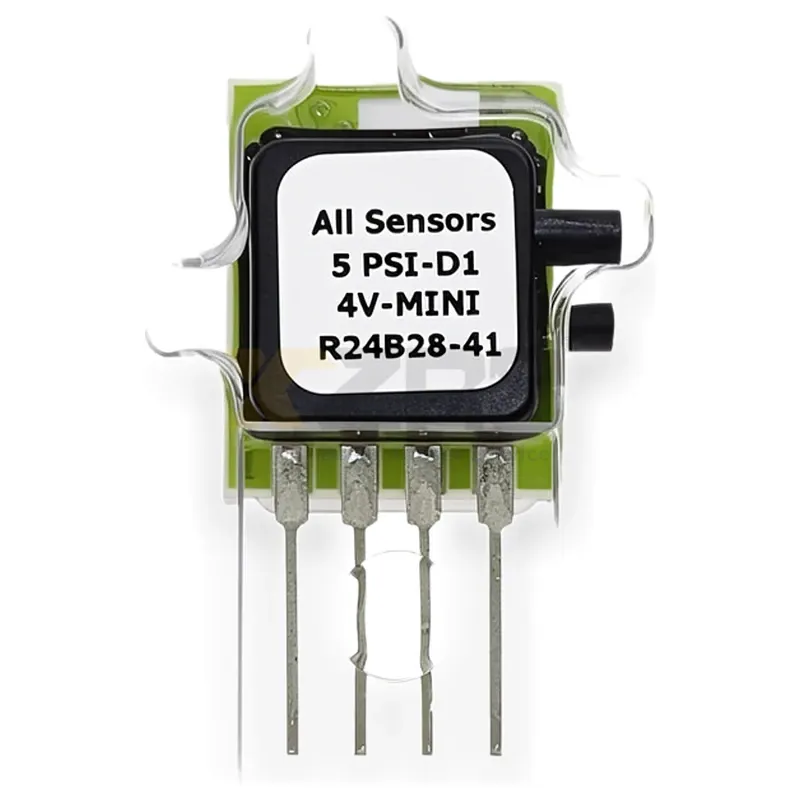

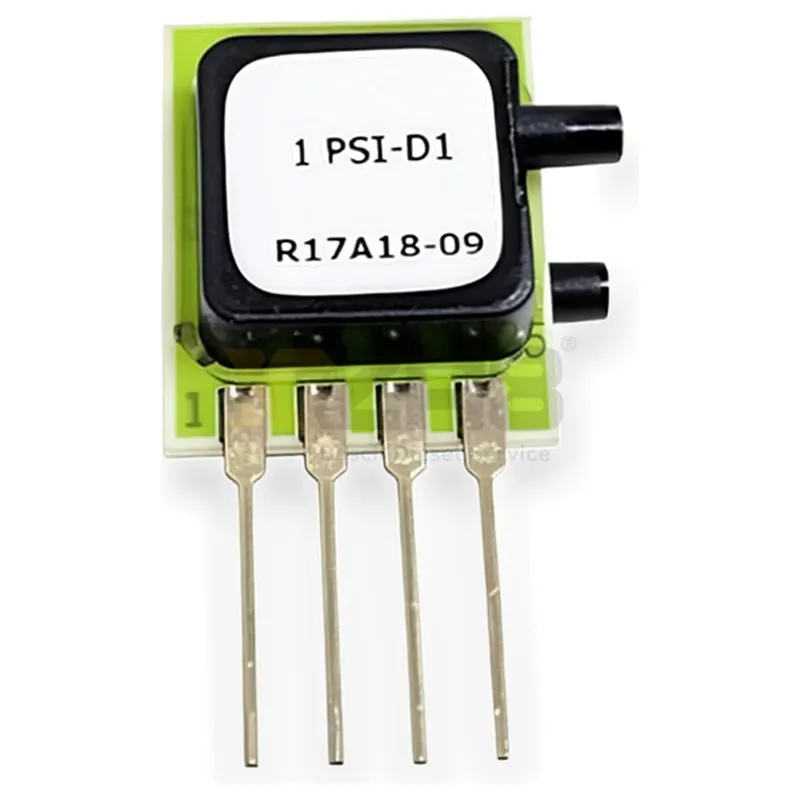

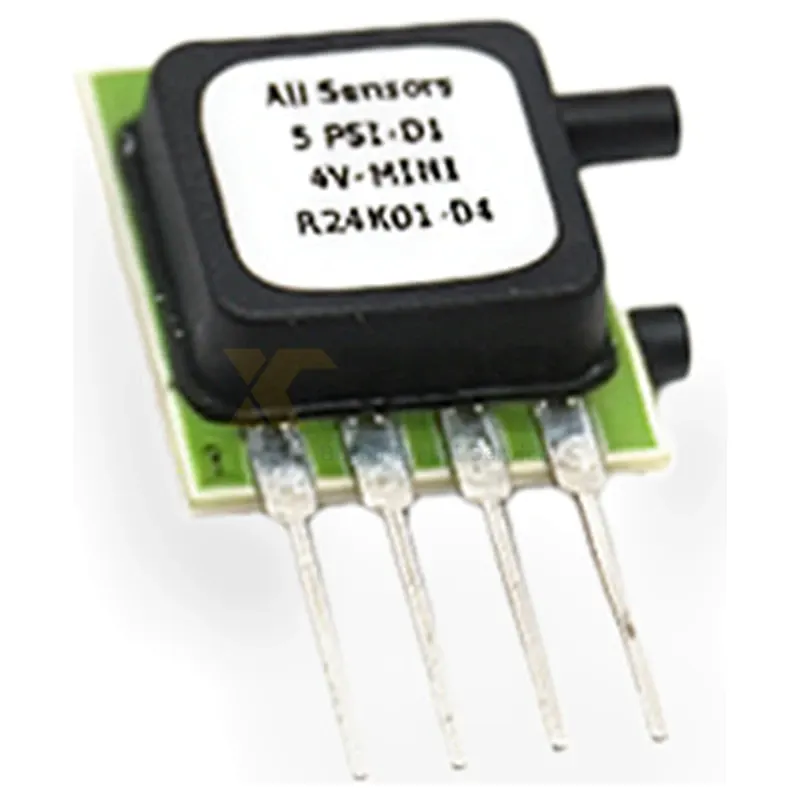

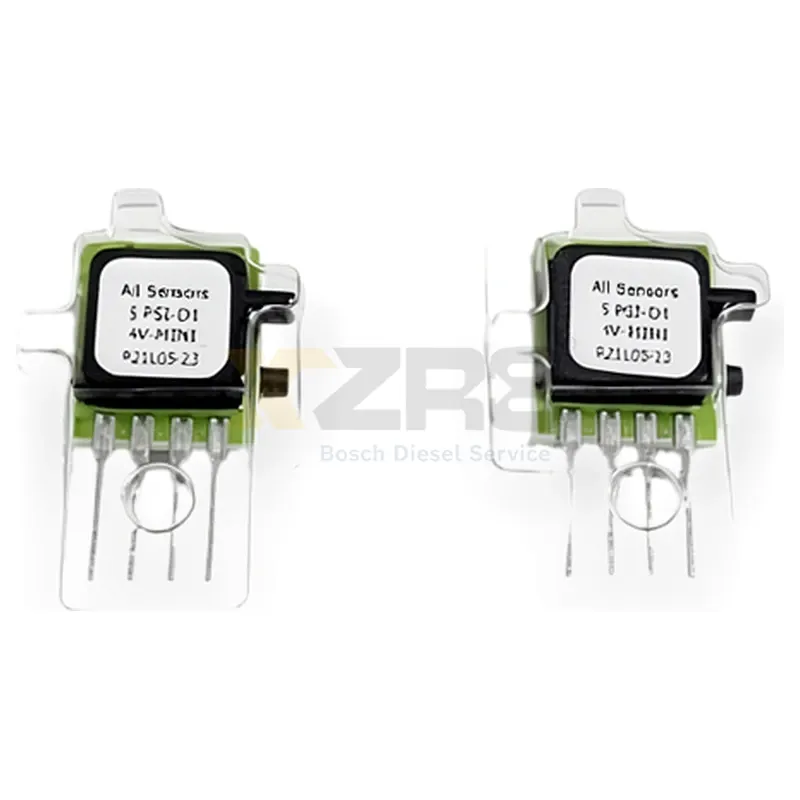

All Sensors PSI-D1-4V-MINI On-Board Pressure Sensor Differential Pressure Amplifier Miniature 4-SIP Package
VIEW PRICELog in to view your customer price
| Series | SAMP series micro amplifier pressure sensor |
| Pressure Type | Pressure Difference |
| Range | 0.3 PSI / 1 PSI / 5 PSI / 30 PSI Optional |
| Output | 0.25V ~ 4.25V or 0.18V ~ 4.5V Analog Voltage |
| Power Voltage | 4.5 ~ 5.5 Vdc |
| Encapsulation | 4-SIP module |
| Port Type | Dual outlet, outer diameter 0.08 inches (2.00mm) |
| Common Pressure | -10 ~ +10 psig |
| Welding Temperature | Up to 260°C, 2-4 seconds |
Manufacturer No.
PSI-D1-4V-MINI
Electrical and Electronic System - Industrial Encyclopedia
All Sensors PSI-D1-4V-MINI on-board pressure sensor, belongs to the SAMP series miniature differential pressure sensor. Offers various range options such as 0.3 PSI, 1 PSI, 5 PSI, 30 PSI, etc., with output of 0.25V to 4.25V or 0.18V to 4.5V analog voltage, supply voltage of 4.5 to 5.5Vdc. Utilizes 4-SIP module packaging, dual tube mouth design, suitable for differential pressure measurement in industrial, medical, and HVAC fields. Original genuine, in stock supply.
