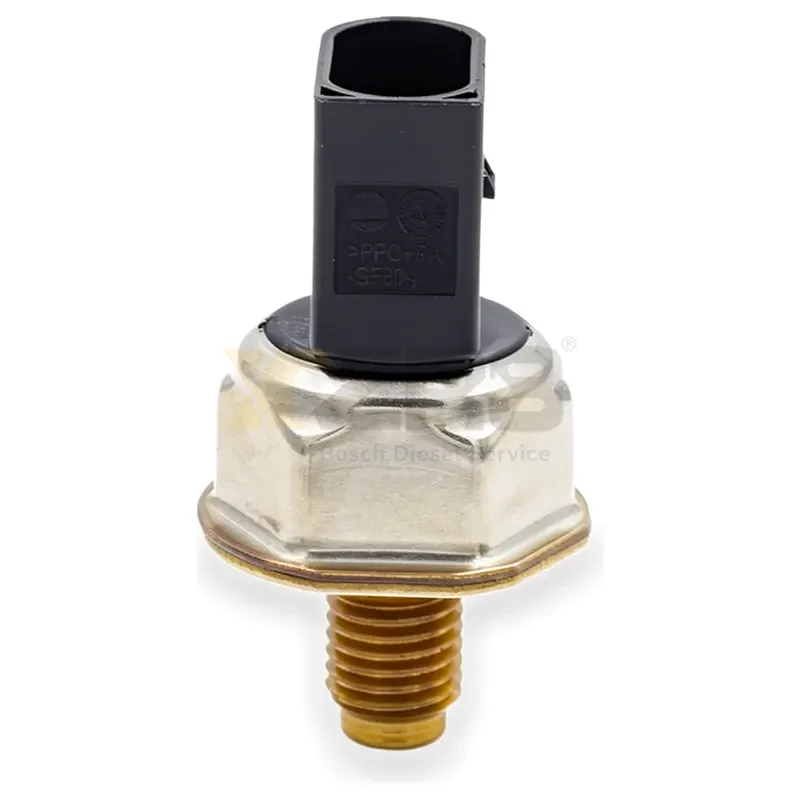

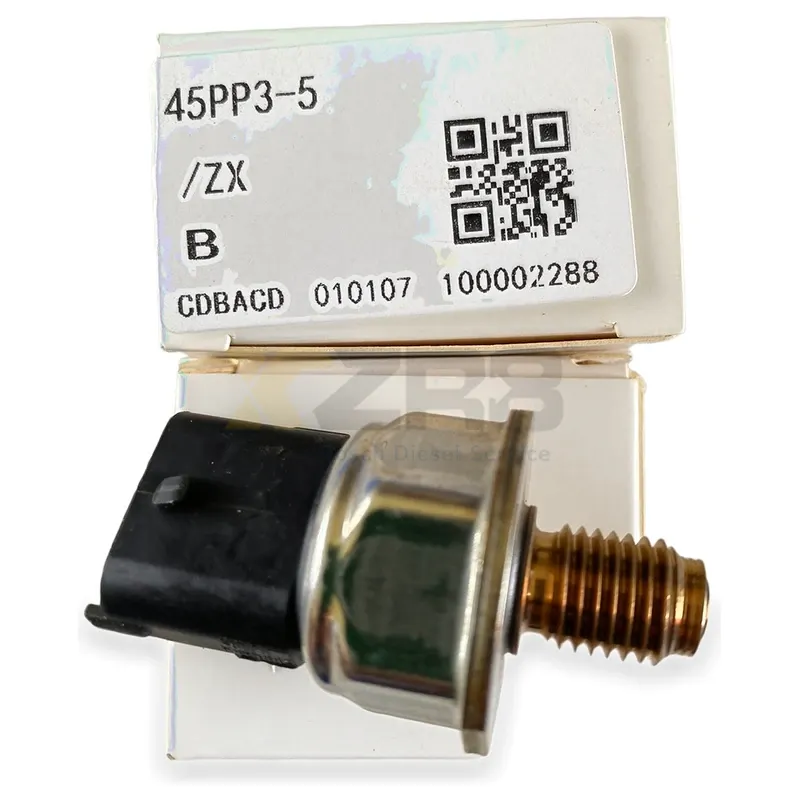

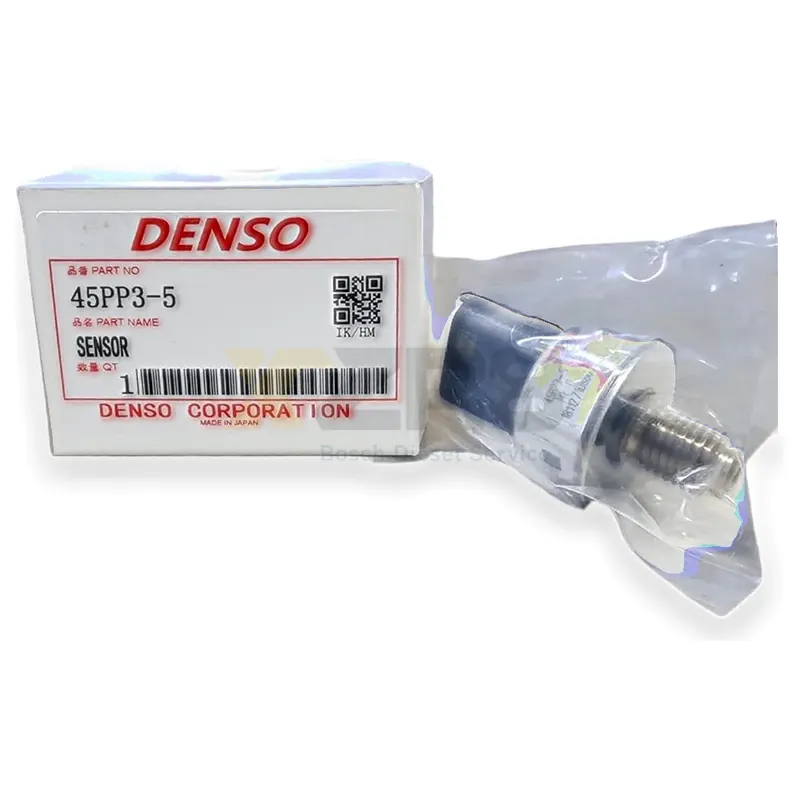

Denso 45PP3-5 Common Rail Fuel Pressure Sensor Assembly (Fits Cummins/Opel/Ford/Vauxhall/Nissan/Xinchi/Wuchai)
VIEW PRICELog in to view your customer price
| Sensor Type | Strain Gauge Type Common Rail Pressure Sensor |
| Manufacturer | Denso |
| Part Number | 45PP3-5 |

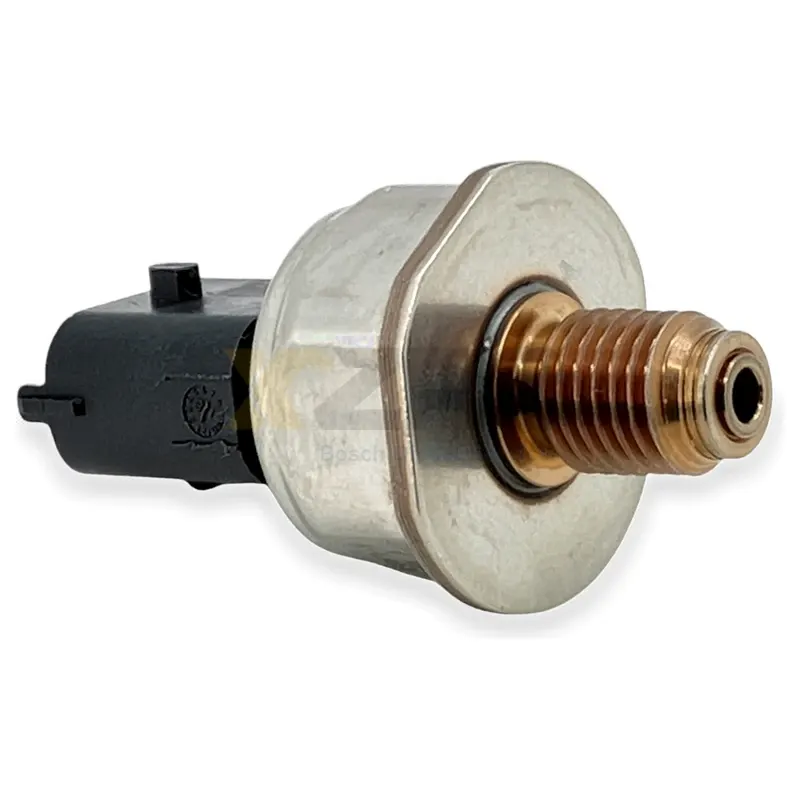

| Interface Thread Specification | M12 x 1.5 (12mm Cone Thread) |

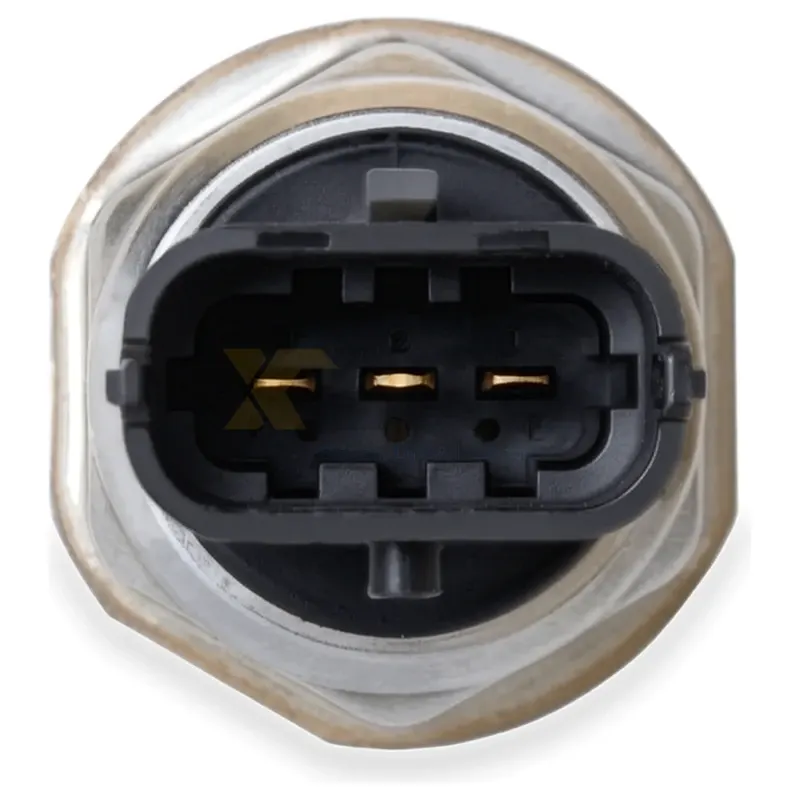

| Pin Count | 3-pin (power/signal/ground) |
| Power Voltage | 5V DC (ECU Power Supply) |
| Output Signal | 0.5V - 4.5V proportional voltage signal (linearly varying with pressure) |
| Range | 0 - 2000 bar (0 - 200 MPa) |
| Working Pressure | 2000 bar |
| Explosion Pressure | ≥ 3000 bar |
| Accuracy Grade | ±1% FS (Full Scale) / ±1.5% FS (Extended Temperature Range) |
| Response Time | < 1 ms |
| Operating Temperature | -40°C to +130°C (Medium Temperature) |
| Environmental Temperature Range | -40°C to +120°C |
| Protection Rating | IP69K (high-pressure wash protection) |
| Shell Material | Stainless Steel (Liquid Pressure Chamber) + PBT/GF30 High Strength Engineering Plastic (Connector Housing) |
| Sealing Method | Metal Seal Gasket (Common Rail End) + Fluorinated Rubber (FKM) O-Ring (ECU Connector End) |
| Installation Torque | 25 ± 5 Nm |
| Installation | Direct Insertion Common Rail Tube Mounting |
| Electrical Connector Standard | Denso Special 3-Pin Connector (compatible with Tyco/AMP 1-967616-1 etc.) |
| Certification | ISO 9001 / IATF 16949 / RoHS / REACH |
Manufacturer No.
45PP3-545PP3-645PP3-145PP3-245PP3-345PP3-445PP4-155PP26-0235PP1-135PP1-2
OEM Part No.
55PP05-018C1Q-9D280-AA1528257658355584473212280555677368240029817870689817870601465A034AC156-A15482402645PP3545PP3 5
Engine Part No.
Cummins ISF2.8Cummins ISF3.8Cummins ISLE9.5Opel 1.7 CDTI (A17DTR/A17DTS)Ford 2.2 TDCI (Puma)PSA DV6 1.6 HDINissan YD25FAWDE 4D28/6D28SDEC SC28/SC33Xichai CA4DF3/CA6DF3Weichai WP6/WP7/WP10
Interchange No.
02.02.XX.025.0084FPS009HOFFER
Fitment Vehicles
Foton Auman/Ollin/Sappu/Tuynan (Cummins Engine)Opel Astra J / Corsa D 1.7 CDTIChevrolet Cruze 1.7 VCDiVauxhall Astra J / Corsa D 1.7 CDTIPeugeot 308/3008/5008/Partner 1.6 HDICitroen C4/C5/DS4/Berlingo 1.6 HDIFord Transit/Transit Custom 2.2 TDCINissan Navara / Terra / Frontier YD25Isuzu D-Max / MU-X 4JJ1 (some years)Faw Jiefang J6P/J7 (Xichai CA6DF3/Weichai WP10)SINOTRUK Howo/Harrier (Weichai/Xichai)Shaanxi Auto DeLion (Weichai/Xichai)Sany/XCMG/Liugong Excavator/Loader (Xichai/Weichai/Cummins)
Electrical and Electronic System - Industrial Encyclopedia
Denso OEM 45PP3-5 common rail pressure sensor, using resistive strain gauge technology, accurately monitors high pressure common rail fuel pressure (0-2000 bar). Widely fits Foton Cummins ISF/ISLE series engines, Opel Astra J/Corsa D 1.7 CDTI, Peugeot Citroën DV6 1.6 HDI, Ford Transit 2.2 TDCI and First Auto Xinchi/Wuchai etc. domestic heavy truck engines. Can replace OE numbers 55PP05-01, 8C1Q-9D280-AA, 15282576583, 55584473, 98178706, etc., M12x1.5 threaded direct insertion installation, three-pin 0.5-4.5V signal output, tested three times on the bench, high-pressure resistance and vibration resistance, effectively solve common rail system faults such as malfunctions, insufficient power, and difficult starting.
