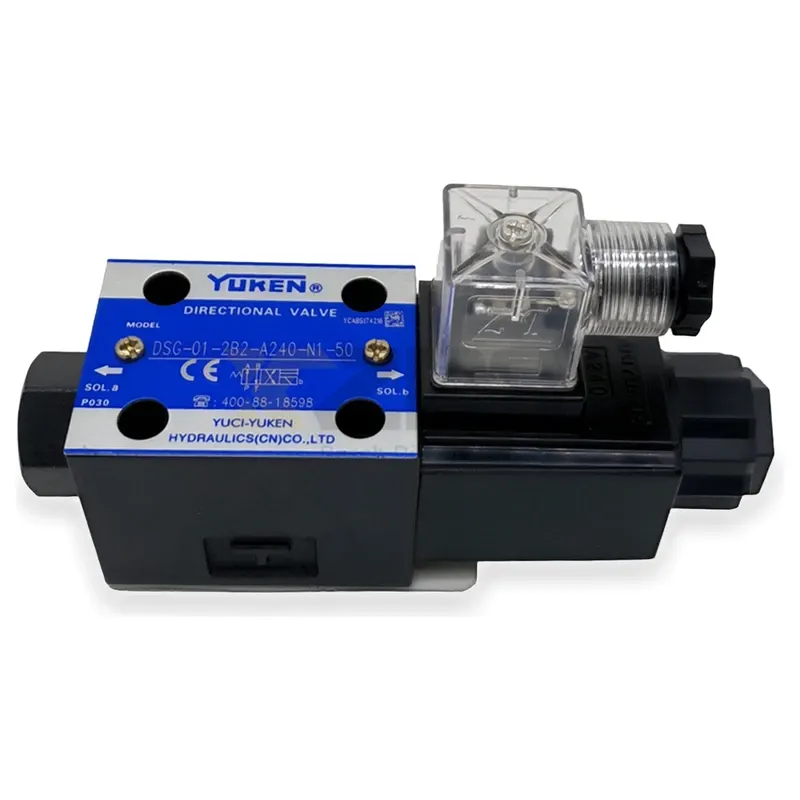

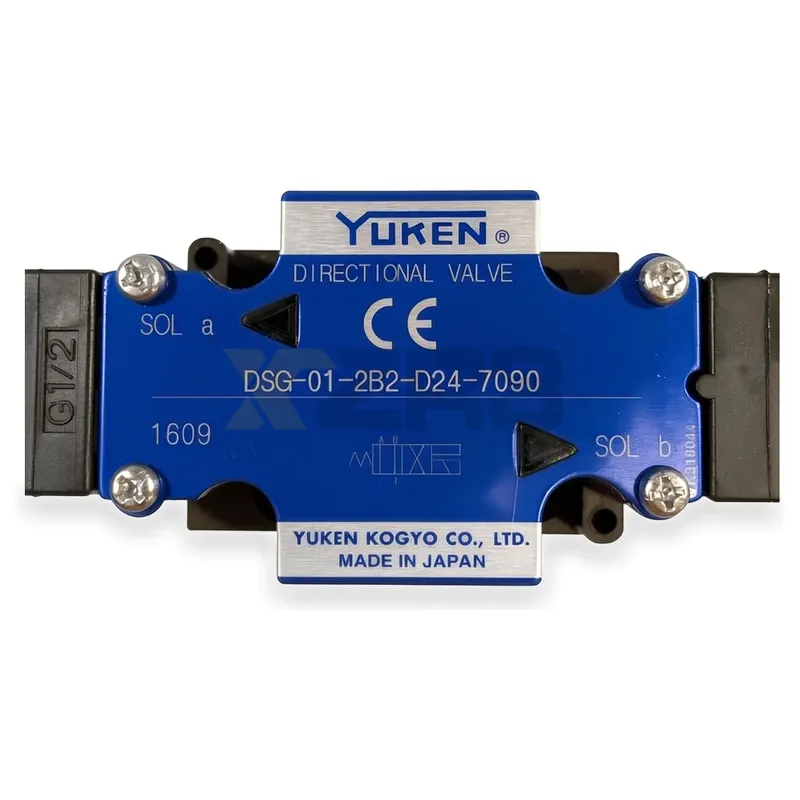

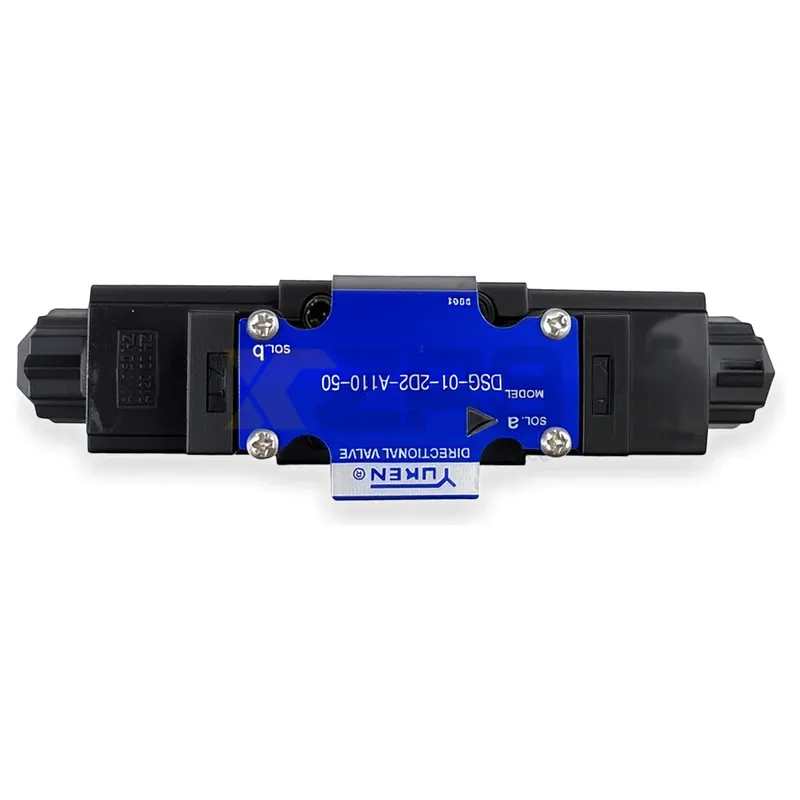

Yuken DSG-01-2D2-D24-50 Solenoid Operated Directional Valve
| Valve Type | Solenoid Operated Directional Control Valve |
| Series | DSG-01 |
| Spool Configuration | 2 Position Detent (2D2) |
| Mounting Standard | CETOP 3 / NG6 / ISO 4401-03 (D03) |
| Max Operating Pressure | 31.5 MPa (315 bar / 4568 PSI) |
| Maximum Flow Rate | 63 L/min (16.6 GPM) |
| Rated Voltage | 24V DC |
| Solenoid Type | Wet Pin Type |
| Port Connection | Subplate Mounted (1/8 NPT / G1/8 Ports) |
| Protection Class | IP65 |
| Valve Body Mass | 1.85 kg |
| Overall Length | 205 mm |
| Design Series | 50 |
Manufacturer No.
DSG-01-2D2-D24-50DSG-01-2D2-D24-N1-50DSG-01-2D2-D24-51DSG-01-2D2-D24-70DSG-01-2D2-D24-N1-51T
Interchange No.
Daikin KSO-G02-2BN-30-CLEVickers DG4V-3-2C-M-U-H7-60Metaris DSG-01BSTIND DSG-01
Hydraulic Systems - Industrial Encyclopedia
OEM replacement Yuken DSG-01 series 24V DC solenoid operated directional control valve, CETOP 3 NG6 mounting, rated 31.5 MPa pressure and 63 L/min flow for industrial hydraulic circuits.
