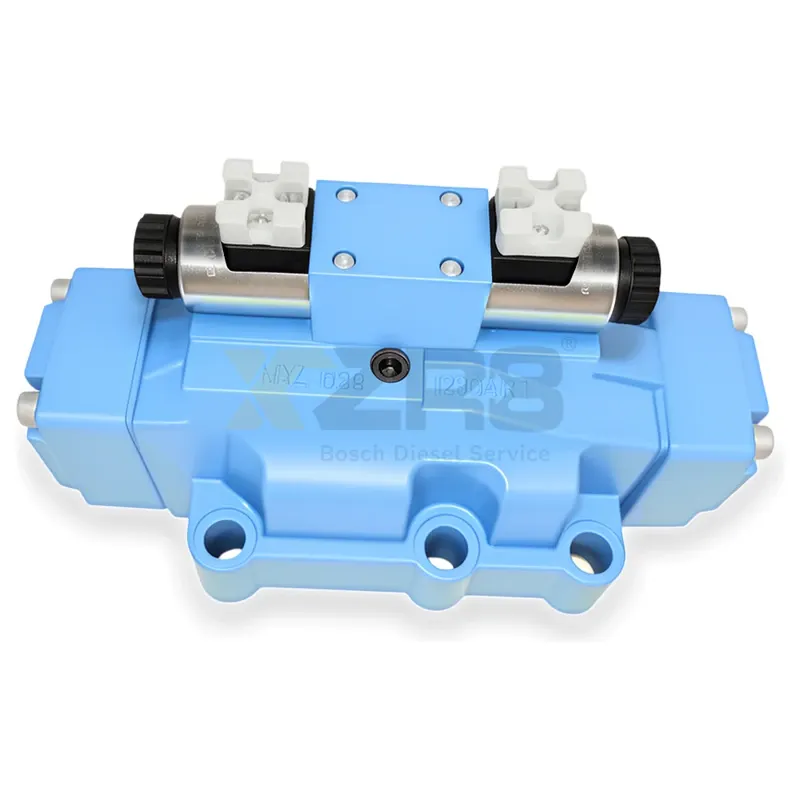

Huade 4WEH16J50B/6EG24NETZ5L Electro-Hydraulic Directional Valve
| Valve Type | 4/3 Electro-Hydraulic Directional Spool Valve |
| Nominal Diameter | NG16 (CETOP 7 / ISO 4401-07) |
| Spool Configuration | J (Center: A,B to T; P blocked) |
| Max Operating Pressure | 35 MPa (350 bar) |
| Max Rail Pressure | 21 MPa (210 bar) external drain |
| Maximum Flow Rate | 300 L/min |
| Control Voltage | 24V DC |
| Control Valve Model | 6EG24NETZ5L |
| Mounting Pattern | ISO 4401-07-07-0-94 (Subplate) |
| Part Series | 50B |
| Solenoid Type | Wet-pin DC with manual override |
| Protection Class | IP65 (DIN 40050) |
| Operating Temperature Range | -20°C to +80°C |
| Viscosity Grade | 2.8–500 mm²/s |
| Drain Function | Internal or External (configurable) |
Manufacturer No.
4WEH16J50B/6EG24NETZ5L4WEH16J50B6EG24NETZ5L4WEH16J50B-6EG24NETZ5L
OEM Part No.
R901012578R900925156R900923811
Interchange No.
4WEH16J7X/6EG24N9ETS2K4/B104WEH16J72/6EG24N9ETK4/B104WEH16J1X/6HG24N9ETK4/B10
Hydraulic Systems - Industrial Encyclopedia
OEM-compatible NG16 electro-hydraulic directional spool valve, 35 MPa max pressure, 300 L/min flow, 24V DC wet-pin solenoid, CETOP 7 mounting, direct Rexroth 4WEH16J replacement.
