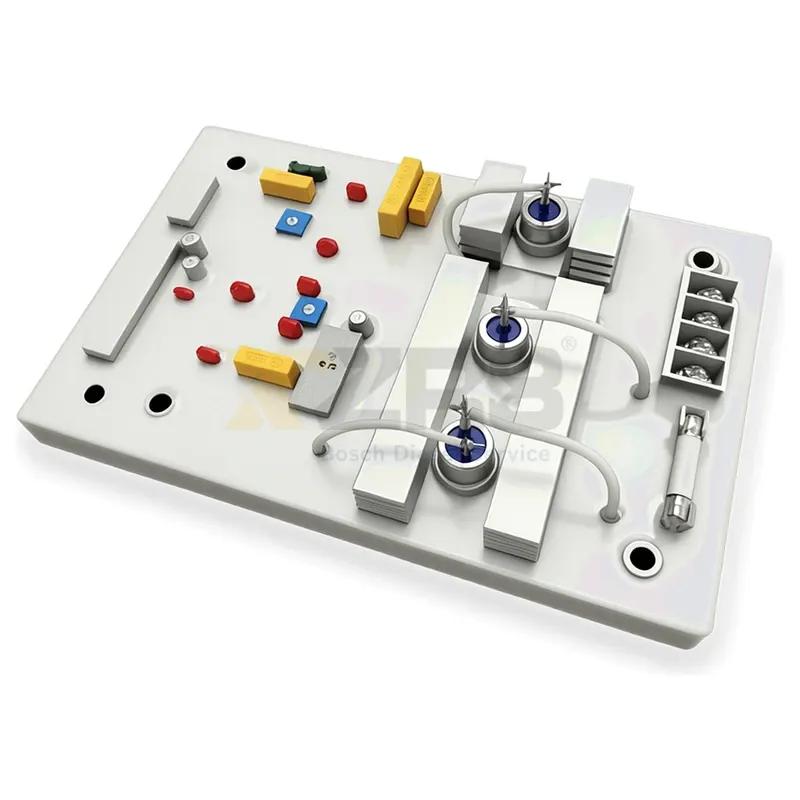

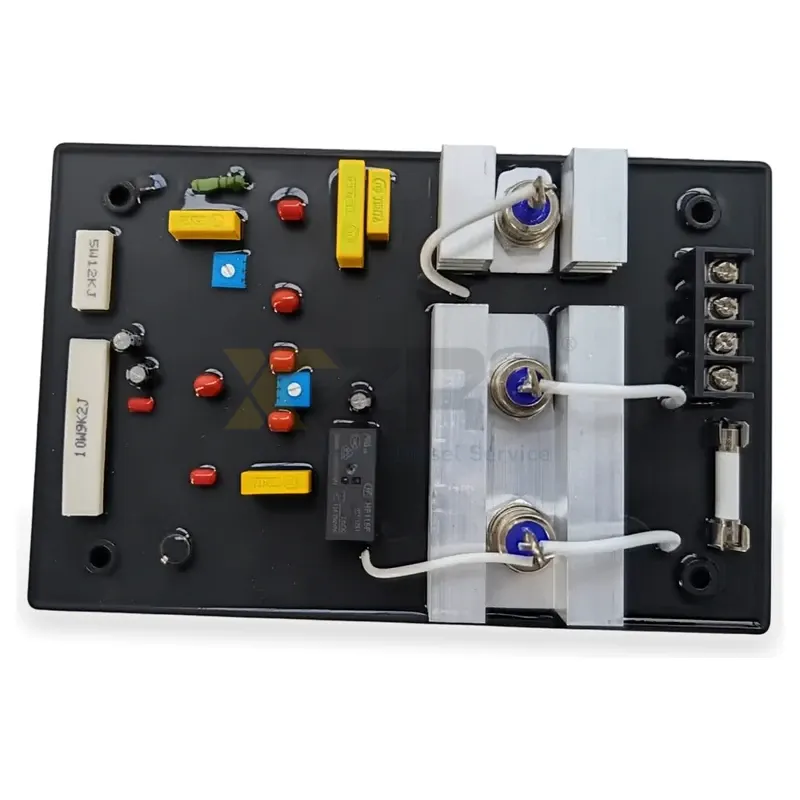

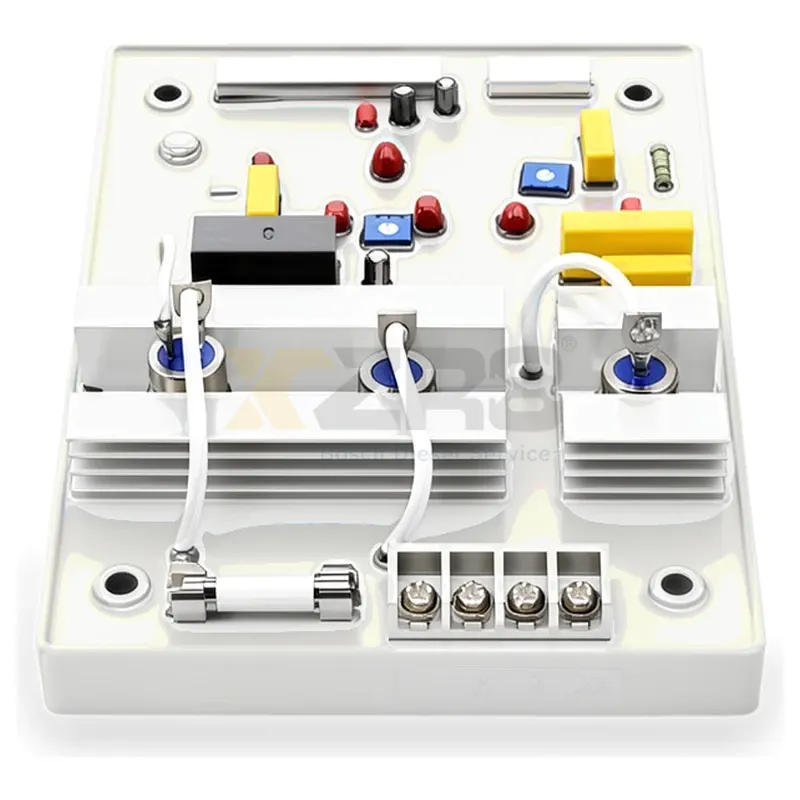

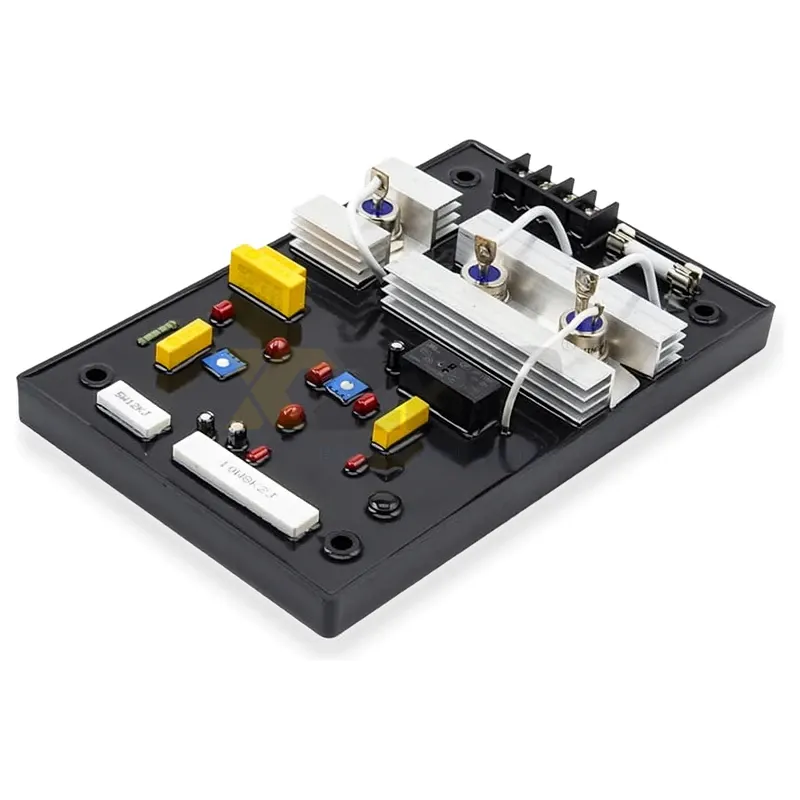

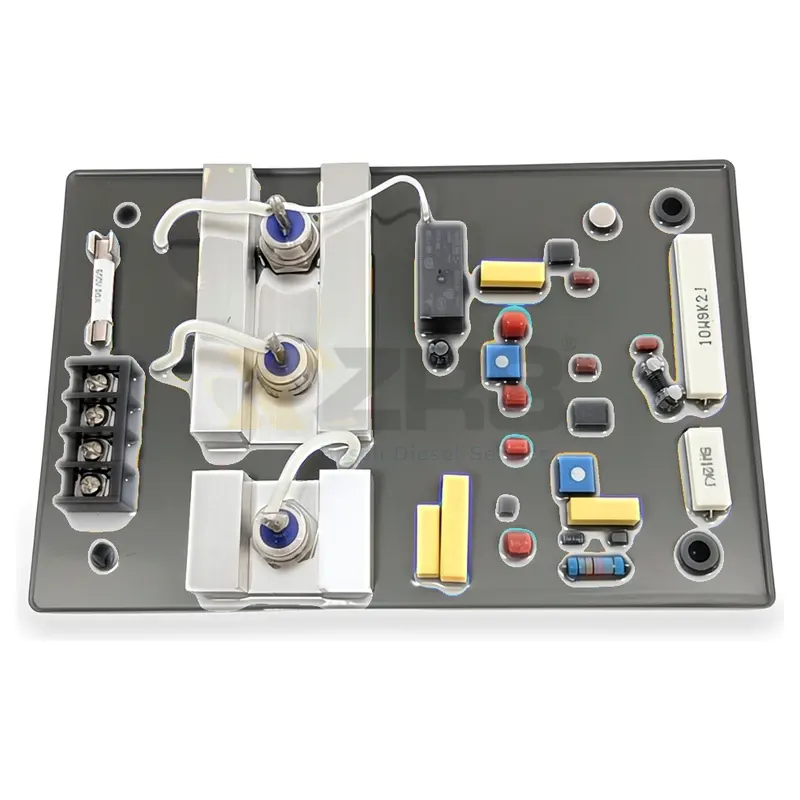

GAVR GAVR-35A Automatic Voltage Regulator
| Regulator Type | Half-Wave Phase-Controlled Thyristor |
| Excitation Type | Self-Excited Brushless |
| Rated Input Voltage | 220/400 VAC Single-Phase 2-Wire (120/240 VAC Jumper Selectable) |
| Voltage Range | 170-270 VAC Single-Phase 2-Wire |
| Maximum Field Output Voltage | 90 VDC |
| Rated Current | 35A |
| Continuous Working Current | 30A |
| Voltage Detection Accuracy | < +/- 1% |
| Frequency Range | 50/60 Hz |
| Protection Type | Under-Frequency Roll-Off, Sensing Loss, Soft Start |
| Mounting Type | PCB Board / Enclosed |
Manufacturer No.
GAVR-35AGAVR35AGAVR 35A
OEM Part No.
Leroy Somer GAVR35A
Interchange No.
POW50AAVR-35AAVR35ASTL-3GAVR-35A-H
Electrical And Electronic Systems - Industrial Encyclopedia
Half-wave thyristor AVR for brushless generators, 35A excitation current, 220/400VAC sensing, 170-270VAC power input, under-frequency protection, +/-1% voltage regulation.
