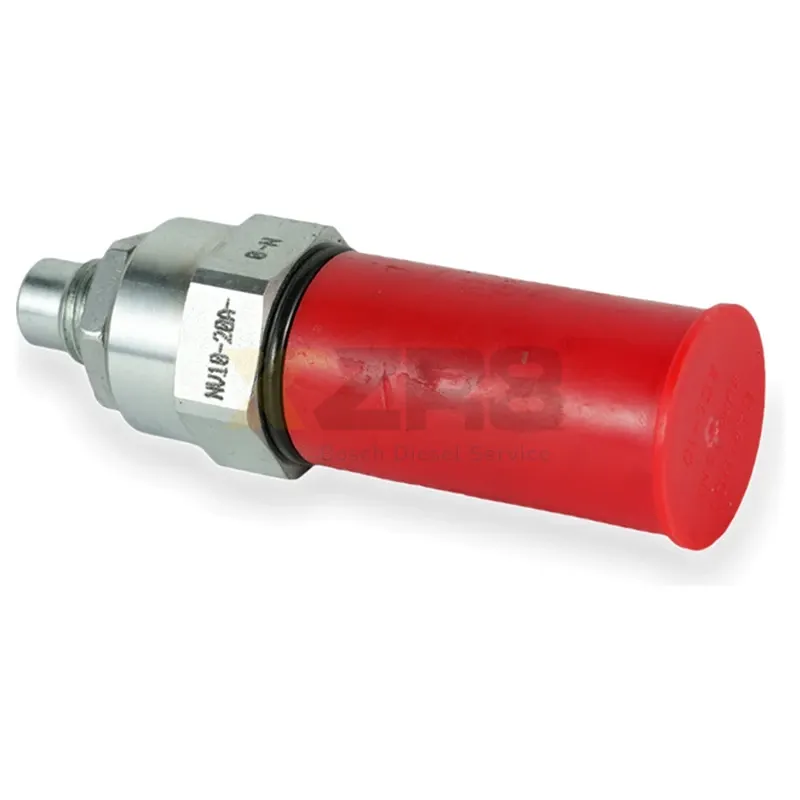

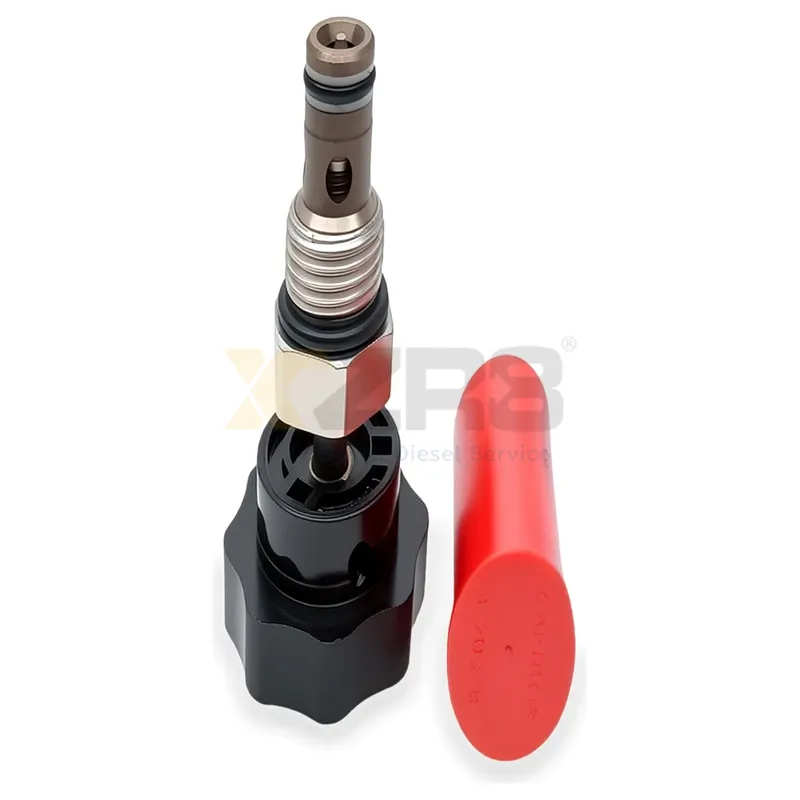

HydraForce NV10-20A-0-N Needle Valve
| Valve Type | Screw-In Cartridge Needle Valve |
| Function | Variable Orifice Flow Restrictor |
| Maximum Operating Pressure | 250 bar (3625 PSI) |
| Test Pressure | 375 bar (5439 PSI) |
| Maximum Flow Rate | 45 L/min (12 GPM) |
| Cavity Number | VC10-2 (7/8-14 UNF-2A) |
| Tightening Method | Manual Counter-Clockwise (5.5 Turns) |
| Internal Leakage | 0.05 mL/min max |
| Locking Device | Lockable Setting |
| Construction | Hardened Parts, Aluminum Knob Option |
| Media Type | Hydraulic Oil |
Manufacturer No.
NV10-20A-0-NNV1020A0N5411000
Interchange No.
E-NV10-20Eaton NV1
Hydraulic Systems - Industrial Encyclopedia
Screw-in cartridge style variable orifice hydraulic needle valve for precise flow control. Rated 250 bar 45 L/min VC10-2 cavity. Hardened parts positive shut-off.
