What are the OEM and cross-reference part numbers for 1621129980?

The OEM and interchange cross-reference numbers for Atlas Copco 1621129980 Intake Valve Assembly include: 1621129980, 1621 1299 80, 1621-1299-80, Sandvik Unloader Assembly 1621129980, Epiroc Unloader Assembly 1621129980.

What are the technical specifications of 1621129980-atlas-copco-intake-valve?

Key technical specifications of Atlas Copco 1621129980 Intake Valve Assembly: port_thread_size: G1/2" to G2-1/2" or NPT Equivalent; flow_range: 0.5 - 40 m3/min; working_pressure_range: 5 - 16 bar; function: Load/Unload Control, Check Valve, Blow-down Relief; mounting_type: Direct Air End Inlet; media_type: Lubricated Compressed Air.

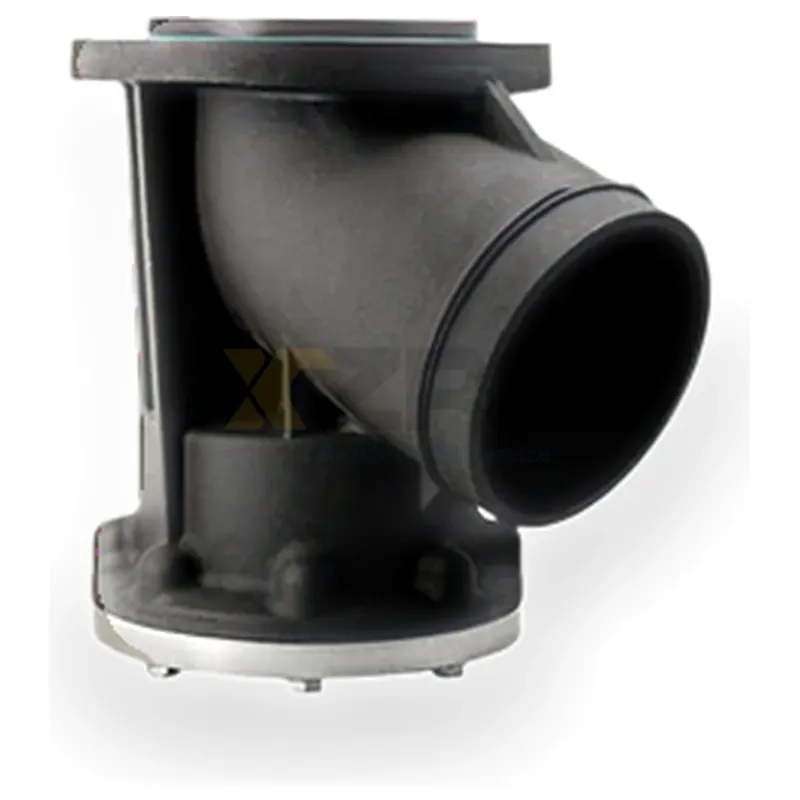

Atlas Copco 1621129980 Intake Valve Assembly - Image 1

1 / 2

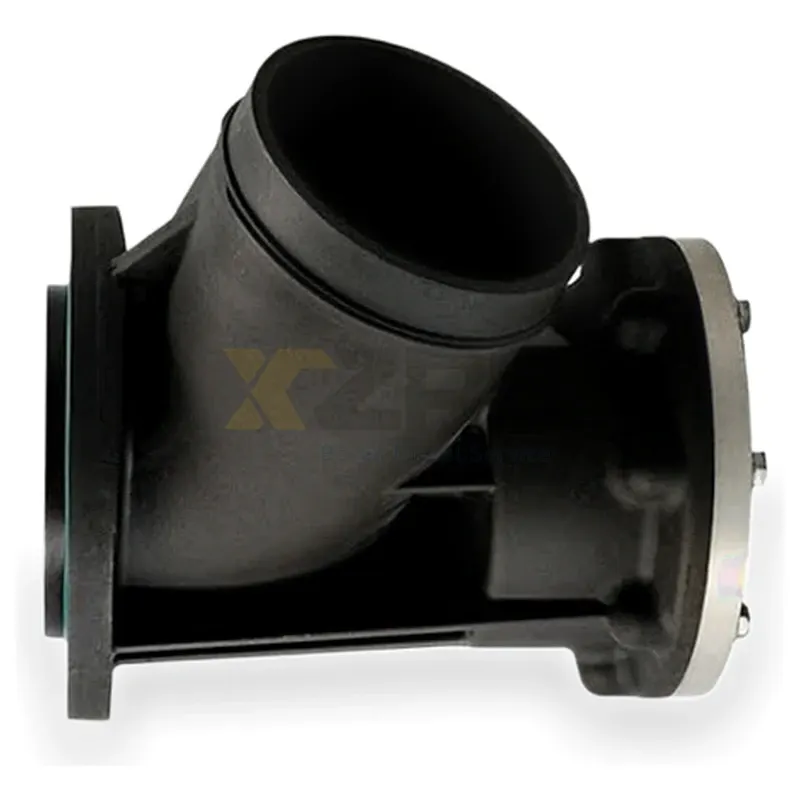

Atlas Copco 1621129980 Intake Valve Assembly

Q: Which equipment and machinery is 1621129980-atlas-copco-intake-valve compatible with?

Atlas Copco 1621129980 Intake Valve Assembly (1621129980-atlas-copco-intake-valve) is compatible with: Atlas Copco GA315, Atlas Copco GA355, Atlas Copco GA400, Atlas Copco GA450, Atlas Copco GA500, Atlas Copco GA315W, Atlas Copco GA355W, Atlas Copco GA400W, Atlas Copco GA450W, Atlas Copco GA500W.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Port Thread Size	G1/2" to G2-1/2" or NPT Equivalent
Flow Range	0.5 - 40 m3/min
Working Pressure Range	5 - 16 bar
Function	Load/Unload Control, Check Valve, Blow-down Relief
Mounting Type	Direct Air End Inlet
Media Type	Lubricated Compressed Air

Manufacturer No.

16211299801621 1299 801621-1299-801621129981

OEM Part No.

16211299801621 1299 801621-1299-80

Interchange No.

Sandvik Unloader Assembly 1621129980Epiroc Unloader Assembly 1621129980

Fitment Vehicles

Atlas Copco GA315Atlas Copco GA355Atlas Copco GA400Atlas Copco GA450Atlas Copco GA500Atlas Copco GA315WAtlas Copco GA355WAtlas Copco GA400WAtlas Copco GA450WAtlas Copco GA500WAtlas Copco GA315 VSDAtlas Copco GA315-500 Series

Fluid Handling Systems - Industrial Encyclopedia

OEM specification intake valve 1621129980 for Atlas Copco GA315-GA500 screw compressors. Regulates inlet flow, load/unload cycles, and anti-backflow protection. Rated 5-16 bar, 0.5-40 m3/min flow capacity.
