Which equipment and machinery is cbn-314l-cbn-hydraulic-gear-pump compatible with?

CBN CBN-314L Hydraulic Gear Pump Assembly (cbn-314l-cbn-hydraulic-gear-pump) is compatible with: Jinma 254, Jinma JM184, Jinma JM204, Jinma JM284, Jinma JM354, Jinma JM404, FarmPro 18-28 HP Series, NorTrac 18-28 HP Series, Foton FT304, Foton FT354.

What are the OEM and cross-reference part numbers for CBN-314L?

The OEM and interchange cross-reference numbers for CBN CBN-314L Hydraulic Gear Pump Assembly include: FT300.58A.020, C901-F314-001, CBN-E314L, CBN-F314L, CBJ30-E12L-W4B, CBN-L314, CBN-E314.

What are the technical specifications of cbn-314l-cbn-hydraulic-gear-pump?

Key technical specifications of CBN CBN-314L Hydraulic Gear Pump Assembly: pump_type: Hydraulic External Gear Pump; displacement: 14 cc/rev; rotation_direction: Right Hand (Clockwise); shaft_configuration: Tang Shaft (Short Rectangular); inlet_thread: M8 x 1.25 at 38 mm Bolt Centers (Side); outlet_thread: M18 x 1.5 (Rear).

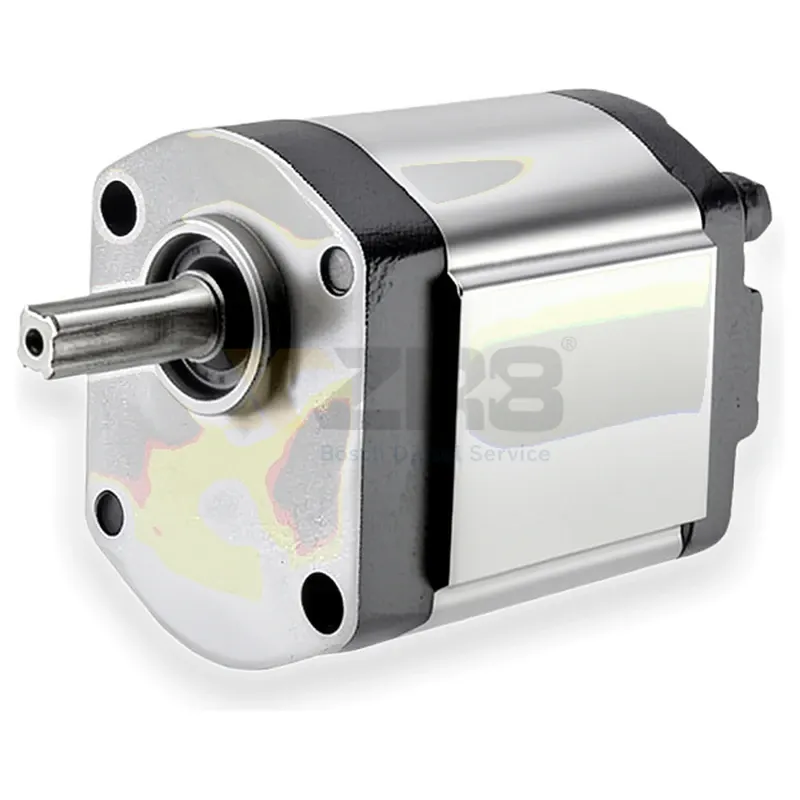

CBN CBN-314L Hydraulic Gear Pump Assembly

Q: Which engines does part cbn-314l-cbn-hydraulic-gear-pump fit?

CBN CBN-314L Hydraulic Gear Pump Assembly fits the following engines: Yangdong Y385T, Yangdong Y380T, Yangdong Y485EPA, Fujian Lijia SL3105, Fujian Lijia SL3100, Changchai KM385, Changchai C490BT.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Pump Type	Hydraulic External Gear Pump
Displacement	14 cc/rev
Rotation Direction	Right Hand (Clockwise)
Shaft Configuration	Tang Shaft (Short Rectangular)
Inlet Thread	M8 x 1.25 at 38 mm Bolt Centers (Side)
Outlet Thread	M18 x 1.5 (Rear)
Mounting Pattern	4-Bolt Square, 62 mm x 62 mm Centers (87 mm Diagonal)
Housing Material	Aluminum Alloy
Net Weight	4.5 kg

Manufacturer No.

CBN-314LCBN-E314LCBN-F314LCBJ30-E12L-W4BFT300.58A.020C901-F314-001

OEM Part No.

FT300.58A.020C901-F314-001

Engine Part No.

Yangdong Y385TYangdong Y380TYangdong Y485EPAFujian Lijia SL3105Fujian Lijia SL3100Changchai KM385Changchai C490BT

Interchange No.

CBN-E314LCBN-F314LCBJ30-E12L-W4BCBN-L314CBN-E314

Fitment Vehicles

Jinma 254Jinma JM184Jinma JM204Jinma JM284Jinma JM354Jinma JM404FarmPro 18-28 HP SeriesNorTrac 18-28 HP SeriesFoton FT304Foton FT354Foton FT404Dongfeng 354YTO Tractors

Hydraulic Systems - Industrial Encyclopedia

OEM replacement CBN-314L hydraulic gear pump with right-hand tang shaft, 14 cc/rev displacement, aluminum body, fits Jinma FarmPro NorTrac Foton 18-28 HP tractors.
